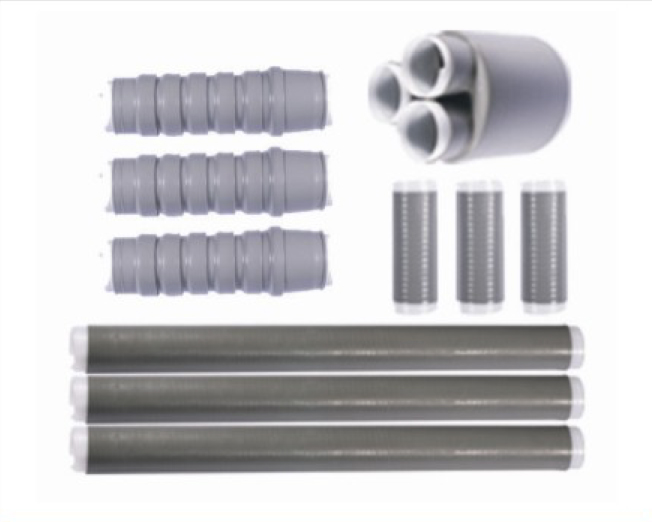

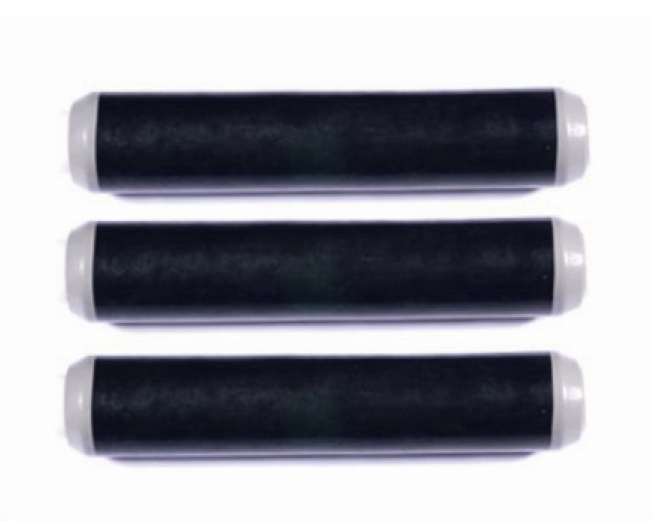

20KV Cold Shrink Series 2025

The 20kV Cold Shrink Series represents cutting-edge cable termination technology engineered for medium-voltage power distribution systems. These innovative terminations combine superior electrical performance with installation simplicity, eliminating the need for heat or special tools.

Key Features

• Advanced Silicone Rubber Material with Excellent Electrical Properties: Provides superior insulation and electrical safety.
• Pre-Expanded Design on Removable Core for Quick, Tool-Free Installation: Simplifies the installation process, reducing labor costs and time.
• Superior Moisture Sealing and Environmental Protection: Ensures reliable performance in wet and humid environments.
• UV-Resistant and Weather-Resistant Construction: Protects against UV radiation and weathering, extending service life.
• Integrated Stress Control Technology: Minimizes electrical stress concentrations for optimal performance.
• Wide Operating Temperature Range (-40°C to +120°C): Suitable for extreme environmental conditions.
• Compatible with Various Cable Types and Sizes: Fits a wide range of cable configurations, ensuring versatility.

Applications

• Power Distribution Networks: Ensures reliable power distribution in medium-voltage networks.
• Industrial Facilities: Supports the operation of industrial facilities requiring high-voltage power.
• Renewable Energy Installations: Ideal for connecting renewable energy sources to the grid.
• Underground Cable Systems: Suitable for underground power distribution networks.
• Substation Connections: Provides stable and safe connections in substations.
• Commercial Buildings: Ensures reliable power distribution in commercial buildings.
• Infrastructure Projects: Supports critical infrastructure with reliable and high-performance cable terminations.

Benefits

• Reduces Installation Time by Up to 50%: Streamlined installation process saves time and labor costs.
• Ensures Consistent Performance Through Foolproof Installation: Easy-to-follow steps ensure correct installation every time.
• Minimizes Maintenance Requirements: Low maintenance needs reduce operational costs.
• Extends Cable System Lifetime: Durable construction and high-quality materials ensure long-term reliability.
• Enhances System Reliability: Advanced stress control and environmental protection improve overall system performance.
• No Special Tools or Heat Source Required: Simplifies the installation process and increases safety.
• Environmentally Friendly Solution: Reduces the need for specialized equipment and materials, minimizing environmental impact.

Technical Specifications

• Rated Voltage: 20kV
• Current Rating: Up to 630A
• Basic Insulation Level (BIL): 75kV
• Temperature Range: -40°C to +120°C
• Insulation Material: Advanced silicone rubber
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEC 60840, IEEE 48, and other relevant international standards

Testing and Quality Assurance

• Rigorous Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

Backed by Comprehensive Technical Support

Our dedicated technical support team is always ready to assist you with any questions or concerns. With a proven track record of excellence, our 20kV Cold Shrink Series represents the ideal choice for professional medium-voltage power distribution applications.

24-Month Warranty

Each unit comes with a 24-month warranty, providing peace of mind and long-term reliability.

Included Components

• Premium Components: High-quality materials and construction.
• Comprehensive Installation Guides: Step-by-step instructions for easy installation.
• Field-Tested Design Features: Ensures reliability and performance in real-world applications.

Our 20kV Cold Shrink Series meets rigorous international safety standards while offering versatile solutions for various medium-voltage connection needs in modern power distribution systems.
