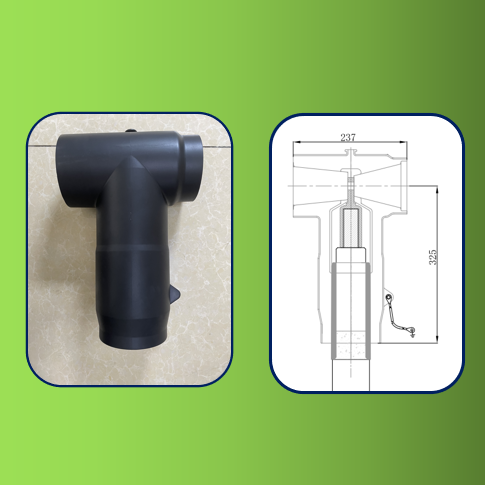

66kV Series Connector PowerElite

Key Features

• Advanced Insulation Technology: Utilizes high-grade EPDM and silicone materials for excellent dielectric properties and environmental resistance.
• Superior Contact Design: Ensures minimal contact resistance and optimal electrical performance.
• Enhanced Thermal Performance: Efficient heat dissipation maintains stable operating temperatures under high load conditions.
• Robust Mechanical Structure: Durable construction withstands harsh environmental conditions and mechanical stress.
• Weather-Resistant Construction: Protects against moisture, dust, and other environmental factors.
• Easy Installation Mechanism: Simplifies the installation process, reducing labor costs and time.
• Comprehensive Safety Features: Includes touch-proof design and built-in voltage detection for operator safety.
• High Conductivity Materials: Uses high-conductivity copper for efficient power transmission.
• Extended Service Life: Built to last, ensuring reliable performance over an extended period.
• Low Maintenance Requirements: Requires minimal maintenance, reducing downtime and operational costs.

Technical Specifications

• Rated Voltage: 66kV
• Current Rating: Up to 1250A
• Basic Insulation Level (BIL): 250kV
• Temperature Range: -40°C to 90°C
• Insulation Material: High-grade EPDM and silicone
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEC 62271-208, IEEE 386

Perfect Applications

• Power Transmission Networks: Ensures reliable and efficient power transmission over long distances.
• Electrical Substations: Provides stable and safe connections in substation environments.
• Industrial Power Systems: Supports the operation of industrial facilities requiring high-voltage power.
• Renewable Energy Facilities: Ideal for connecting renewable energy sources to the grid.
• Grid Interconnections: Facilitates seamless integration of power grids.
• Heavy Industrial Complexes: Ensures reliable power supply in large industrial complexes.
• Power Generation Plants: Supports the efficient operation of power generation facilities.
• Distribution Networks: Ensures reliable power distribution in various network configurations.
• Utility Infrastructure: Enhances the reliability of utility infrastructure.
• High-Voltage Installations: Suitable for a wide range of high-voltage applications.

Innovative Design

• State-of-the-Art Insulation Materials: High-grade EPDM and silicone provide excellent dielectric properties and environmental resistance.
• Precise Electrical Stress Control: Ensures optimal performance under high voltage conditions.
• Comprehensive Touch Protection: Prevents accidental contact, enhancing operator safety.
• Modular Design: Facilitates easy and secure connections in diverse applications.

Testing and Quality Assurance

• Comprehensive Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

Backed by Our Technical Support Team

Our dedicated technical support team is always ready to assist you with any questions or concerns. With a proven track record of excellence, this connector series represents the future of high-voltage power distribution solutions.
