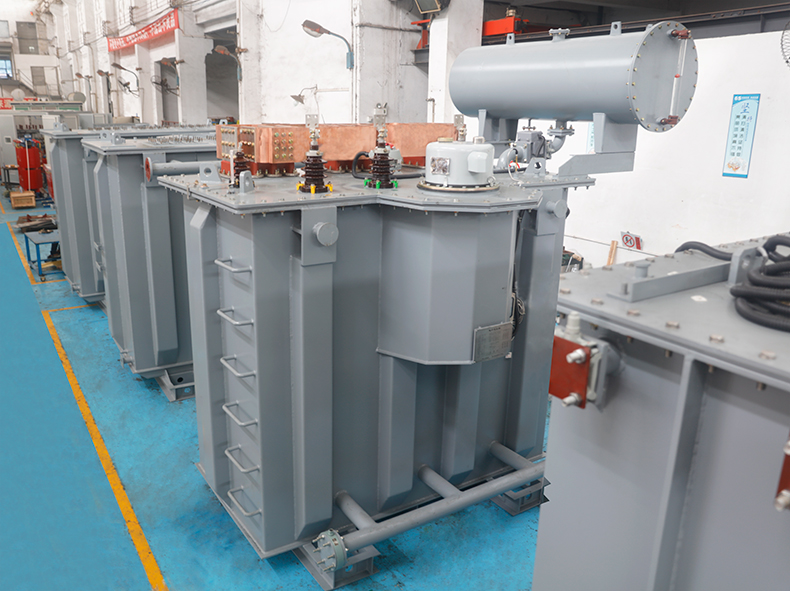

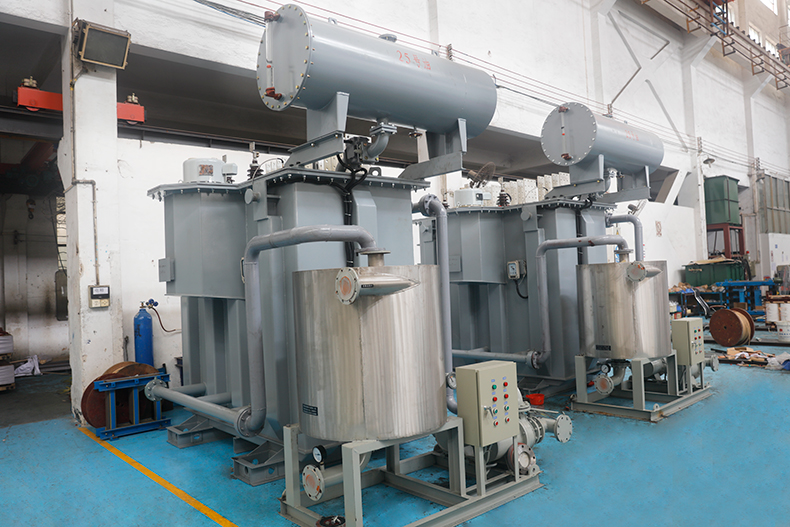

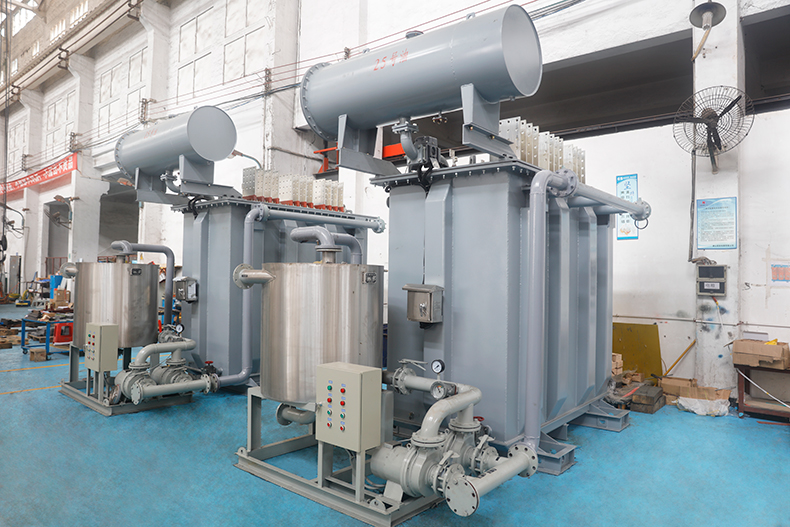

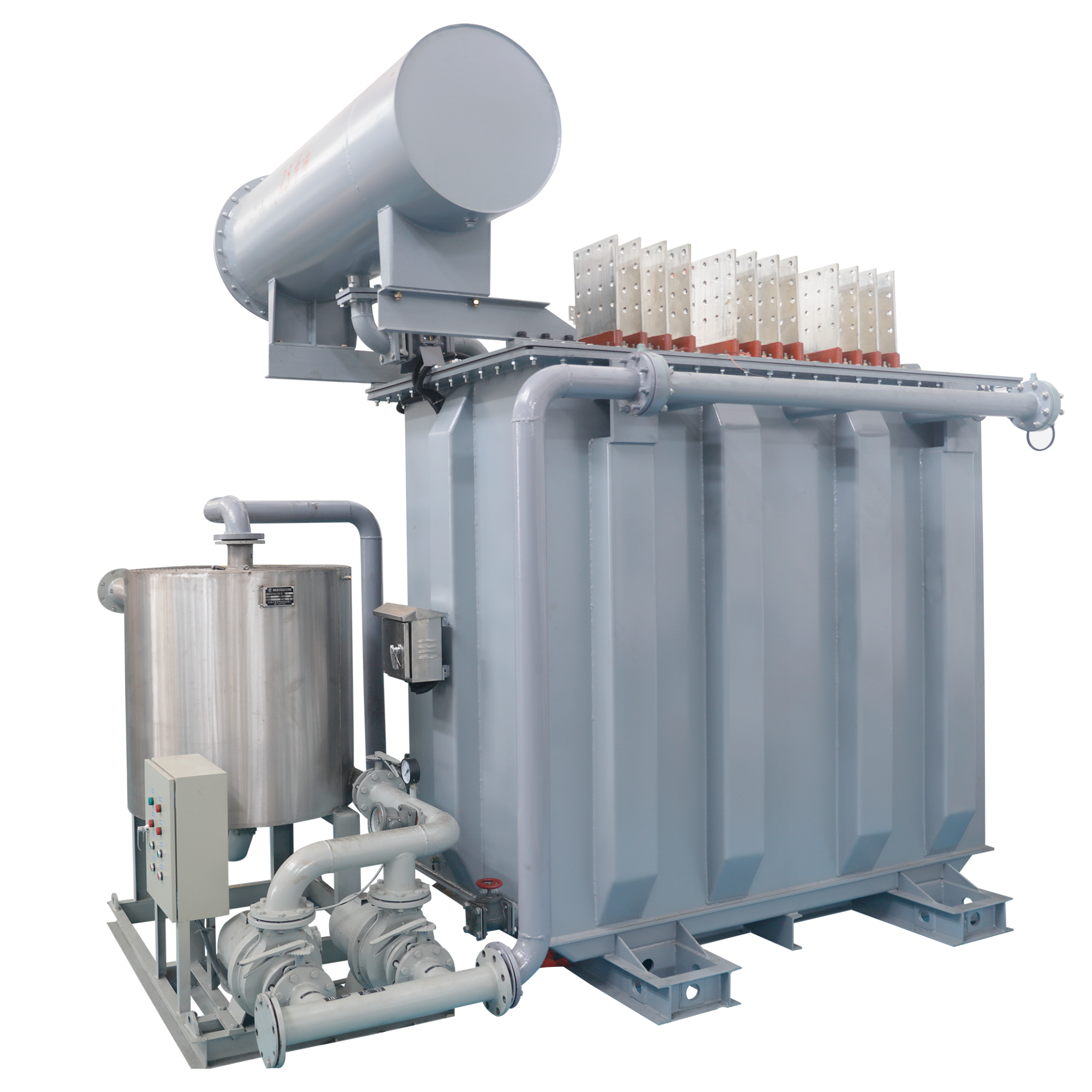

10KV Oil Type Electric Arc Furnace Transformer

Product Highlights

• Robust Construction: Designed to meet the demanding requirements of high-power electric arc furnace applications in steel manufacturing.
• Advanced Cooling Technology: Combines oil-immersed cooling with optimized heat dissipation capabilities.
• High-Grade Materials: Utilizes high-quality cold-rolled silicon steel sheets and high-purity oxygen-free copper flat wire windings.
• Enhanced Performance: High overload capacity, excellent voltage regulation, and low noise operation.
• Comprehensive Protection: Advanced overload protection, temperature monitoring, and pressure relief systems ensure safe and reliable operation.

Key Technical Features

Core Design

• High-Grade Cold-Rolled Silicon Steel Sheet Construction: Ensures minimal core losses and low noise levels.
• Advanced Shear Slitting Line and Cross-Cut Line Processing: Precise cutting and shaping for optimal performance.
• Multi-Level Stacking with Miter Joints: Enhances magnetic flux distribution and reduces core losses.
• Optimized Core Design: Minimizes no-load losses and ensures low noise operation.
• Enhanced Magnetic Flux Distribution: Improves efficiency and performance.

Winding Construction

• High-Purity Oxygen-Free Copper Flat Wire Windings: Provides excellent electrical conductivity and durability.
• Premium Insulation Board with Superior Dielectric Strength: Ensures long-term reliability and safety.
• Advanced Cylindrical Winding Structure: Enhances mechanical strength and uniform electric field distribution.
• Synchronized Jacking System for Coil Assembly: Ensures precise and secure winding assembly.
• Reinforced Short-Circuit Capacity: Designed to withstand high short-circuit forces.
• Uniform Electric Field Distribution: Reduces the risk of electrical failures.
• Enhanced Axial Clamping Force System: Ensures stable and reliable operation under heavy loads.

Cooling System

• Oil-Immersed Cooling Design: Provides efficient heat dissipation and long-term operational stability.
• Wide Steel Plate Tank Construction: Ensures robust and durable housing.
• Optimized Oil Flow Channels: Enhances heat dissipation and maintains optimal operating temperatures.
• Enhanced Heat Dissipation Capability: Keeps the transformer cool even under heavy loads.
• Temperature Monitoring System: Continuously monitors temperature to prevent overheating.

Technical Specifications

• Voltage Class: 10kV to 35kV
• Power Rating: Customizable based on furnace requirements
• Frequency: 50/60 Hz
• Cooling Method: ONAN/ONAF

Applications

• Electric Arc Furnaces: Ideal for high-power electric arc furnace applications in steel manufacturing.
• Ladle Refining Furnaces: Supports ladle refining processes for improved steel quality.
• Steel Making Facilities: Ensures reliable power supply for steel production.
• Industrial Smelting Operations: Suitable for various industrial smelting processes.
• Metal Recycling Plants: Supports metal recycling operations with high efficiency.
• Special Metallurgical Processes: Meets the unique requirements of specialized metallurgical processes.

Key Advantages

Performance

• High Overload Capacity: Capable of handling high loads without compromising performance.
• Excellent Voltage Regulation: Ensures stable and reliable power supply.
• Low Noise Operation: Minimizes noise levels for a quieter working environment.
• Superior Thermal Performance: Efficient cooling system keeps the transformer operating at optimal temperatures.
• Enhanced Reliability: Robust design and high-quality materials ensure long-term reliability.

Protection Features

• Advanced Overload Protection: Safeguards against overloading and ensures safe operation.
• Temperature Monitoring: Continuous monitoring of temperature to prevent overheating.
• Short-Circuit Protection: Protects against short-circuit conditions.
• Oil Level Monitoring: Ensures proper oil levels for optimal cooling and insulation.
• Pressure Relief System: Safely releases pressure in case of failure.

Construction

• Heavy-Duty Tank Design: Ensures robust and durable housing.
• Reinforced Mechanical Structure: Resistant to mechanical stress and vibrations.
• High-Quality Insulation System: Provides superior dielectric strength and long-term reliability.
• Optimized Cooling System: Efficient heat dissipation for long-term operational stability.
• Easy Maintenance Access: Simplified design for easy inspection and maintenance.

Customization Options

• Multiple Voltage Taps: Customizable voltage taps to meet specific application requirements.
• Special Impedance Requirements: Tailored impedance to optimize performance.
• Custom Cooling Systems: Custom cooling solutions for unique operating conditions.
• Enhanced Protection Features: Additional protection devices for enhanced safety.
• Specific Dimensional Requirements: Custom dimensions to fit specific installation spaces.
• Special Operating Conditions: Designed to operate in challenging environments.

Quality Assurance

• Rigorous Testing Procedures: Thorough testing to ensure reliable performance and long service life.
• International Quality Standards Compliance: Meets international standards for safety and performance.
• Extended Warranty Options: Offers extended warranty for added peace of mind.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Documentation: Detailed operating manuals, test certificates, and maintenance guides.

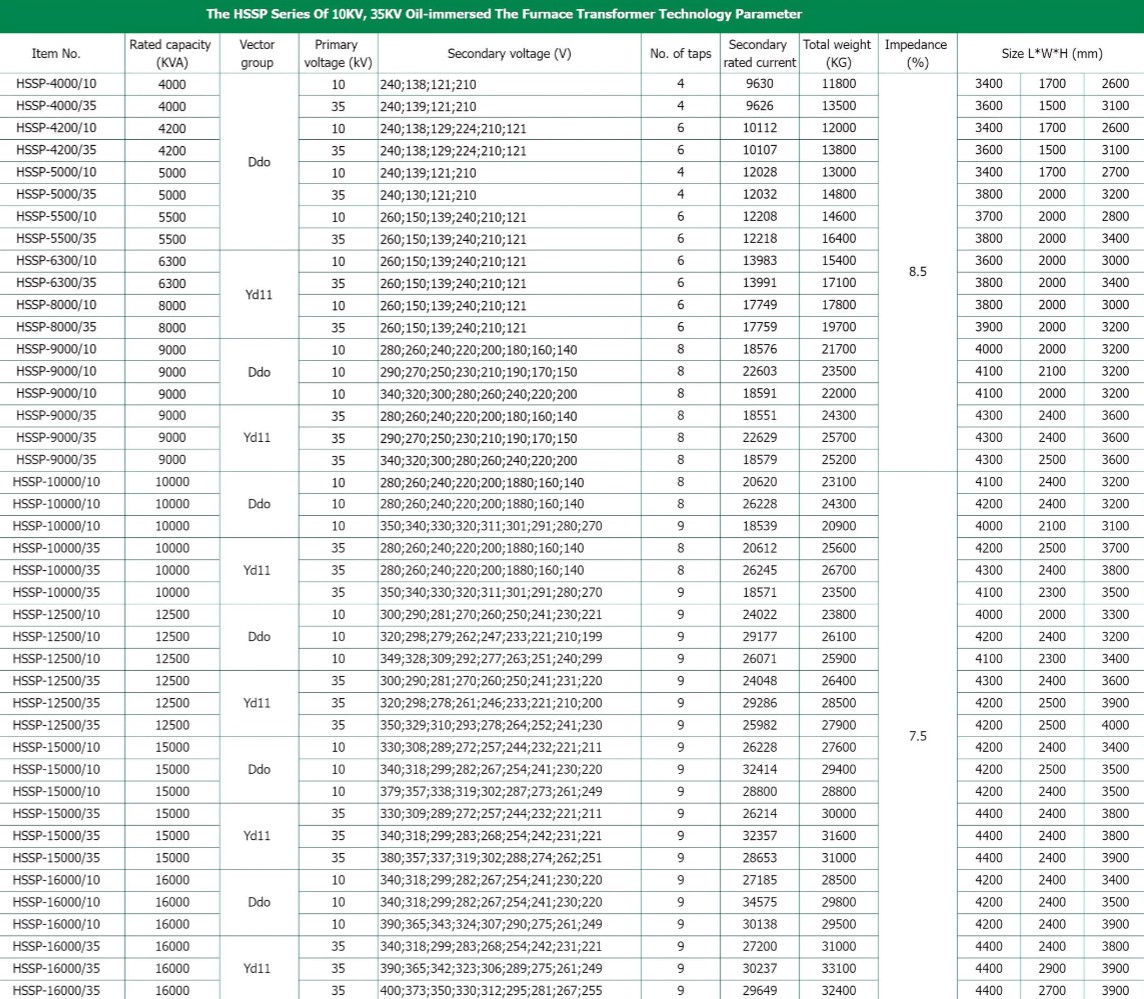

The specific parameter table is as follows, please refer to the parameter table in the figure below!

Contact us for detailed specification
