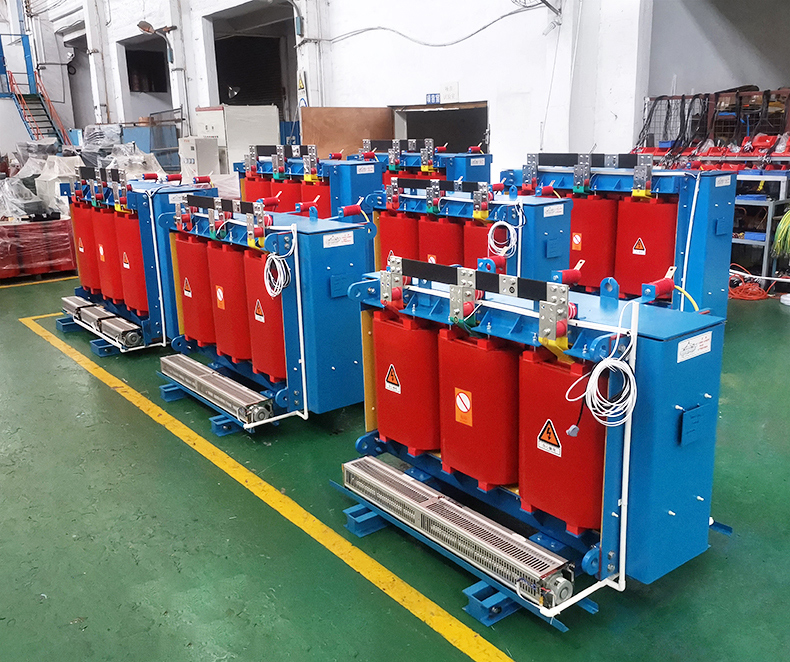

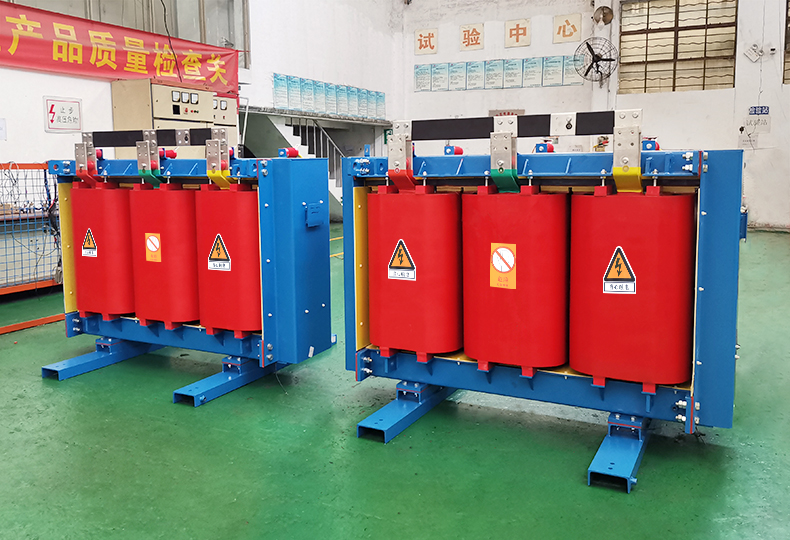

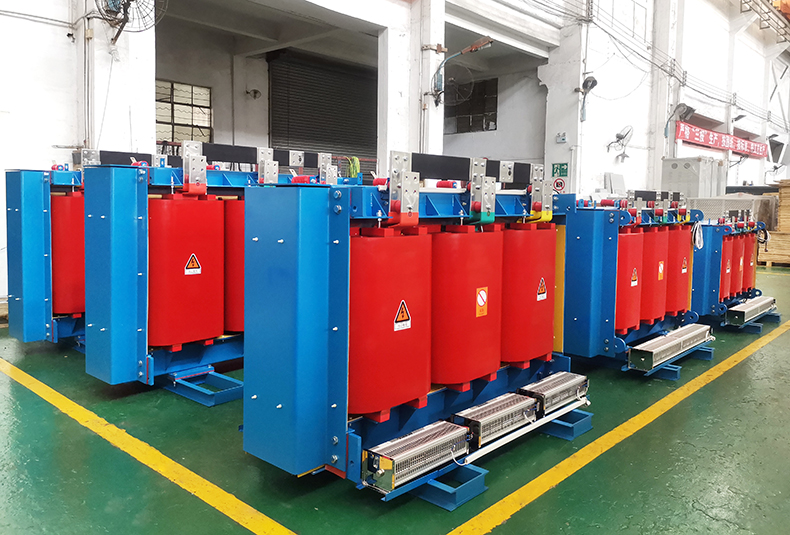

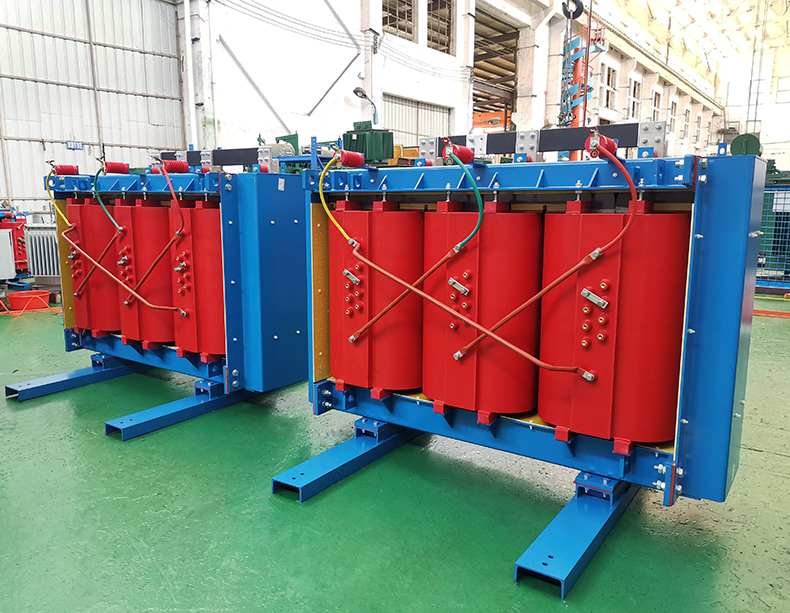

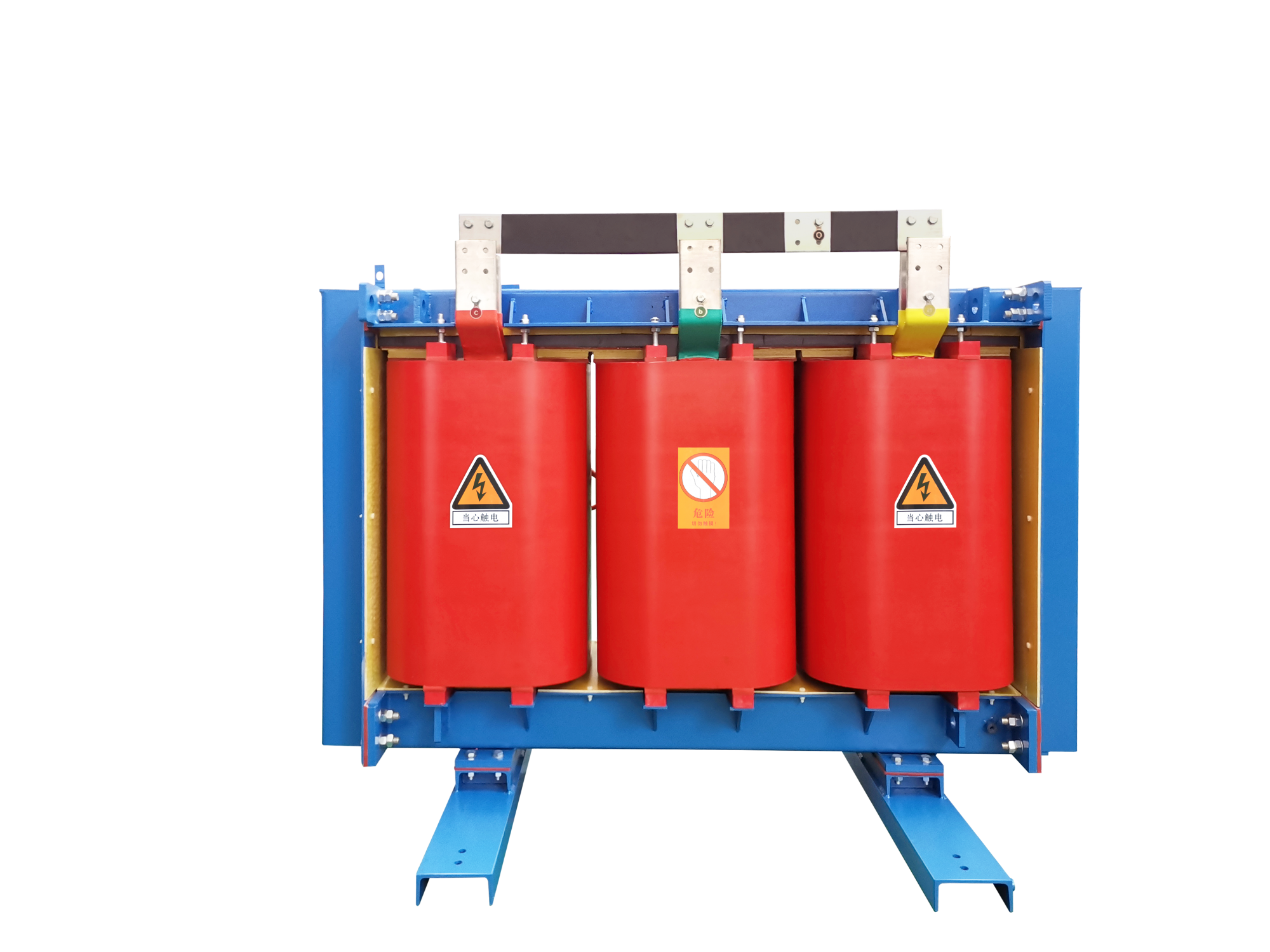

Amorphous Alloy Dry Type Transformer

Product Highlights

• Advanced Amorphous Alloy Core Technology: Higher energy efficiency with up to 70% lower iron losses compared to conventional transformers.
• Capacity Range: From 100 kVA to 2500 kVA.
• Rated Voltage: 6-11kV (high voltage) / 10kV (low voltage).
• High-Performance Insulation System: Temperature rise rating of 120°C.
• Low-Noise Operation: Ensures a quiet working environment.
• Compact Design and Optimized Size: Saves space and fits easily into tight locations.
• Excellent Short-Circuit Withstand Capability: Designed to handle high short-circuit forces.

Key Features

Advanced Amorphous Alloy Core Technology

• Higher Energy Efficiency: Up to 70% lower iron losses compared to conventional transformers.
• Capacity Range: From 100 kVA to 2500 kVA.
• Rated Voltage: 6-11kV (high voltage) / 10kV (low voltage).

High-Performance Insulation System

• Temperature Rise Rating: 120°C, ensuring long-term reliability and safety.
• Low-Noise Operation: Minimizes noise levels for a quieter working environment.
• Compact Design and Optimized Size: Saves space and fits easily into tight locations.

Excellent Short-Circuit Withstand Capability

• Robust Construction: DYN11 carrier group for enhanced reliability.
• Advanced Cooling Design: Ensures efficient heat dissipation.
• Enhanced Thermal Performance: Maintains optimal operating temperatures.
• Low Maintenance Requirements: Robust design and high-quality materials minimize maintenance needs.

Technical Advantages

Energy Efficiency

• No-Load Losses: As low as 0.5-1.2%.
• Excellent Load Performance: Performs well under different load conditions.
• Energy Savings: Significant energy savings throughout the entire operational lifecycle.

Reliability

• Robust Construction: DYN11 carrier group ensures high reliability.
• Advanced Cooling Design: Optimized for efficient heat dissipation.
• Enhanced Thermal Performance: Maintains stable operating temperatures.
• Low Maintenance Requirements: Robust design and high-quality materials minimize maintenance needs.

Environmental Benefits

• Reduce Carbon Footprint: Lower energy consumption and reduced CO2 emissions.
• Lower Operating Temperature: Efficient cooling system keeps the transformer cool.
• Environmentally Friendly Dry Design: No risk of oil leakage or environmental contamination.

Applications

• Commercial Buildings and Shopping Centers: Ideal for providing reliable power distribution in commercial areas.
• Transportation Hubs, Stations, Airports: Ensures stable and efficient power supply in critical transportation infrastructure.
• Industrial Facilities: Supports stable power for production lines, machinery, and other industrial applications.
• High-Rise Residential Complexes: Ensures reliable power supply in residential buildings.

Available Models

Our product range includes SCBH15-100/10 to multiple capacity options for the SCBH15-2500/10, including:

• Rated Power: 100-2500 kVA
• No-Load Loss: 130W-1200W
• Load Loss: 1570W-17170W
• Optimized Dimensions: Tailored for each capacity level to ensure efficient space utilization.
• Weight Range: 950-8400 kg

Technical Specifications

• Rated Power: 100-2500 kVA
• Rated Voltage (High Voltage): 6-11kV
• Rated Voltage (Low Voltage): 10kV
• Frequency: 50/60 Hz
• No-Load Loss: 130W-1200W
• Load Loss: 1570W-17170W
• Temperature Rise Rating: 120°C
• Insulation Class: H
• Noise Level: ≤ 65 dB
• Protection Class: IP20

Key Advantages

Energy Efficiency

• No-Load Losses: As low as 0.5-1.2%.
• Excellent Load Performance: Performs well under different load conditions.
• Energy Savings: Significant energy savings throughout the entire operational lifecycle.

Reliability

• Robust Construction: DYN11 carrier group ensures high reliability.
• Advanced Cooling Design: Optimized for efficient heat dissipation.
• Enhanced Thermal Performance: Maintains stable operating temperatures.
• Low Maintenance Requirements: Robust design and high-quality materials minimize maintenance needs.

Environmental Benefits

• Reduce Carbon Footprint: Lower energy consumption and reduced CO2 emissions.
• Lower Operating Temperature: Efficient cooling system keeps the transformer cool.
• Environmentally Friendly Dry Design: No risk of oil leakage or environmental contamination.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: Routine maintenance schedules ensure optimal performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

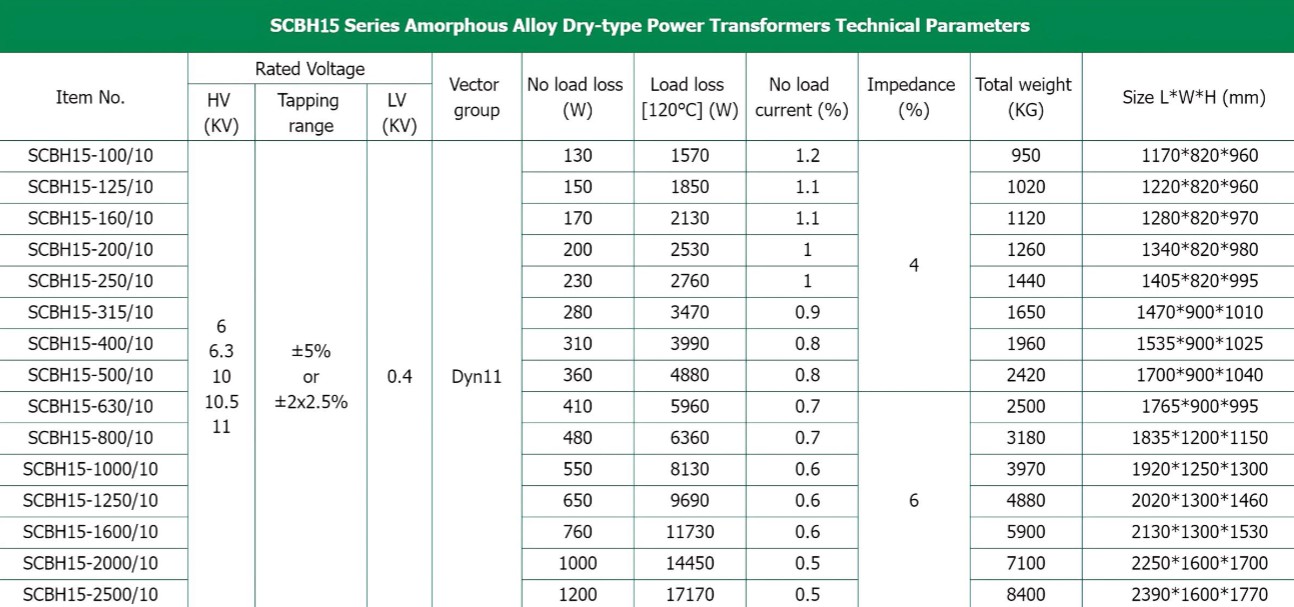

The specific parameter table is as follows, please refer to the parameter table in the figure below!

Contact us for detailed specification
