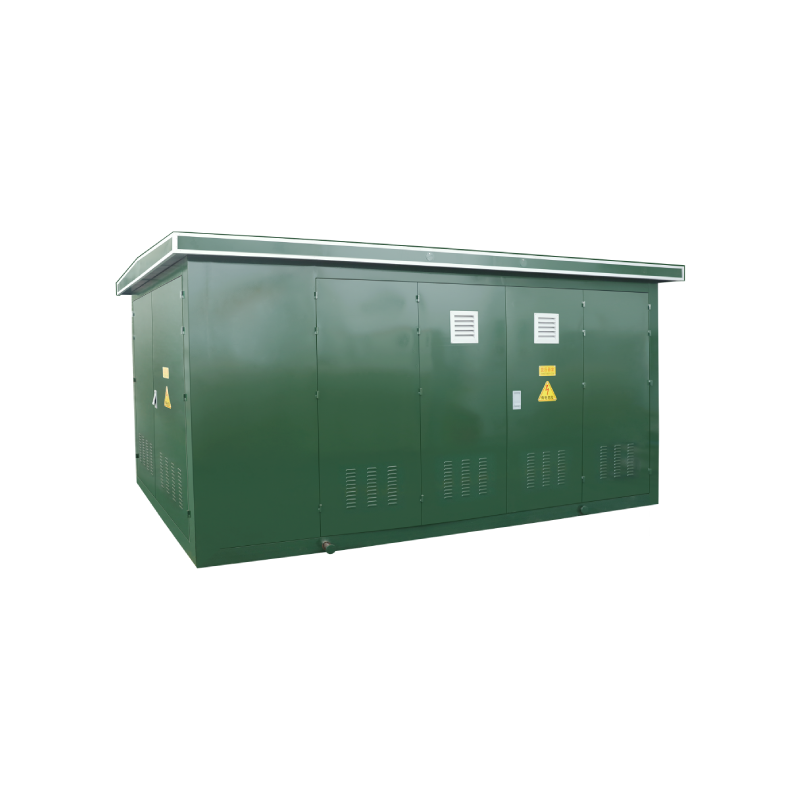

Three Phase 5000kVA 20kV Compact Transformer for Shield Machine

Product Highlights

• Wide applicability: It is suitable for various places such as schools, commercial centers, substations, factories and so on. Additional equipment such as rectifiers can also be added according to customer requirements, so it is very popular in the African market.

• Easy installation: on-site installation requires only six steps: positioning, high-voltage terminal wiring, protection calibration, transmission test, debugging, etc., which greatly shortens the installation time and improves the efficiency.

• Fully insulated construction: Includes high-voltage and low-voltage switchgear, transformers, circuit breakers and other components with no exposed live parts, minimizing the risk of electric shock and increasing safety.

• Flexible Configuration: Each compact transformer is a self-contained system that can be combined in a variety of ways to meet different needs.

• Multi-functional integration: Including oil-immersed transformers, ring mains and low-voltage cabinets with comprehensive functions.

• Power System Integration: Integration of high and low voltage switchgear, transformers, circuit breakers and other components into a unified system.

• Customizable Expansion: Flexible customization and expansion according to customer requirements.


application scenario

• Commercial centers: provide stable power supply for shopping malls, office buildings, hotels, etc.

• Schools and Educational Institutions: To meet the power needs of classrooms, laboratories, dormitories, etc.

• Substations: for urban power distribution networks and industrial park power systems.

• Industrial facilities: Ensure stable power supply to production lines, machinery and lighting systems to meet high load demands and ensure continuous production.

• Renewable energy projects: for the conversion and distribution of electricity from solar, wind and other renewable energy systems to support the efficient use of clean energy.

• Special applications: Customized rectifiers, UPS and other equipment for industries such as electroplating, electrolysis and communication base stations.


Technical specifications (customizable)

• Model YBW-5000/22/0.4

• Rated voltage (high voltage side): 22kV

• Rated voltage (low voltage side): 0.4 kV

• Rated power: 5000 kVA

• Phase three-phase

• Rated frequency: 50 Hz

• Standard: IEC Standard

• Brand: Aputon


Why choose our transformers?

• High-Quality Materials: High quality materials are used to ensure durability and safety.

• Professional Design: Strictly tested to meet international safety standards to ensure reliable performance.

• Comprehensive After-sales Service: Appleton provides reliable brand support and technical guarantee to make your purchase worry-free.


Procurement skills

• Ensure that the power of the equipment does not exceed the rated capacity of the transformer.

• For assistance, please contact our customer service team. We will be happy to assist you!


Contact us for detailed specification
