Three Phase Oil Cooled Transformer Rectifier

Product Highlights

• Specialized Split Winding Design: Multi-voltage output for versatile applications.
• Advanced Oil Cooling System: Superior heat dissipation for optimal performance.
• Integrated Rectifier Assembly: Combines transformer and rectifier functions in one unit.
• High-Performance Insulation System: Ensures long-term reliability and safety.
• Robust Mechanical Construction: Designed for continuous and reliable operation.
• Low Voltage Drop Characteristics: Ensures efficient power delivery.
• Multiple Protection Features: Comprehensive safety mechanisms for reliable operation.

Key Features

Specialized Split Winding Design

• Multi-Voltage Output: Customizable voltage ranges to meet specific application requirements.
• Split-Type Design: Separate oil tanks for each winding to ensure efficient cooling and isolation.

Advanced Oil Cooling System

• Oil Immersed Natural/Forced Cooling: Superior heat dissipation to maintain stable operating temperatures.
• Sealed Tank Construction: Prevents oil leakage and extends equipment life.
• Built-in Temperature Monitoring: Continuous monitoring to prevent overheating.

Integrated Rectifier Assembly

• Combined Transformer and Rectifier Functions: Compact and efficient design.
• High-Grade Magnetic Core: Ensures minimal core losses and low noise levels.
• Double-Wound Copper Conductors: Provides excellent electrical conductivity and durability.
• High-Quality Insulation Oil: Ensures superior insulation and cooling properties.

Robust Mechanical Construction

• Heavy-Duty Tank Design: Ensures robust and durable housing.
• Reinforced Mechanical Structure: Resistant to mechanical stress and vibrations.
• High-Performance Insulation System: Provides superior dielectric strength and long-term reliability.

Low Voltage Drop Characteristics

• Efficient Power Delivery: Minimizes voltage drop for optimal performance.
• Uniform Electric Field Distribution: Reduces the risk of electrical failures.

Multiple Protection Features

• Over-Voltage Protection: Safeguards against voltage surges.
• Short-Circuit Protection: Protects against short-circuit conditions.
• Over-Temperature Protection: Prevents overheating and ensures safe operation.
• Oil Level Monitoring: Ensures proper oil levels for optimal cooling and insulation.
• Pressure Relief Device: Safely releases pressure in case of failure.

Technical Specifications

• Power System:

• Construction:


Applications

• Electrochemical Processes: Ideal for electroplating, anodizing, and other electrochemical applications.
• Metal Surface Treatment: Supports metal finishing and surface treatment processes.
• Industrial Power Supplies: Ensures reliable DC power supply for various industrial applications.
• DC Motor Drives: Provides stable and efficient power for DC motors.
• Battery Charging Systems: Ideal for battery charging stations and systems.
• Electrolysis Plants: Supports electrolysis processes in chemical and industrial plants.

Advantages

Cooling Efficiency

• Superior Heat Dissipation: Oil cooling system ensures efficient heat dissipation.
• Stable Operating Temperature: Maintains optimal operating temperatures for extended equipment life.
• Reduced Maintenance Requirements: Efficient cooling reduces the need for frequent maintenance.

Reliability

• Robust Construction: Designed for continuous and reliable operation.
• Excellent Voltage Regulation: Ensures stable and reliable power supply.
• Low Maintenance Requirements: Robust design and high-quality materials minimize maintenance needs.
• High Overload Capacity: Capable of handling high loads without compromising performance.

Safety

• Multiple Protection Mechanisms: Comprehensive safety features ensure safe operation.
• IP Protection Class Design: Provides protection against dust and water ingress.
• Environmental Safety Considerations: Environmentally friendly design with no harmful emissions.
• Low Noise Operation: Minimizes noise levels for a quieter working environment.

Optional Features

• Digital Monitoring System: Real-time monitoring of key parameters.
• Remote Control Capability: Allows remote operation and monitoring.
• Custom Voltage/Current Ratings: Tailored to specific application requirements.
• Additional Cooling Fans: Enhanced cooling for high-demand applications.
• Special Protection Features: Additional safety mechanisms for enhanced protection.
• Extended Warranty Options: Offers extended warranty for added peace of mind.

Installation and Maintenance

• Easy Installation with Minimal Site Preparation: Simple and straightforward installation process.
• Regular Oil Quality Monitoring: Ensures optimal performance and longevity.
• Routine Maintenance Schedules Available: Regular maintenance schedules for optimal operation.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual Included: Detailed operating instructions and maintenance guidelines.

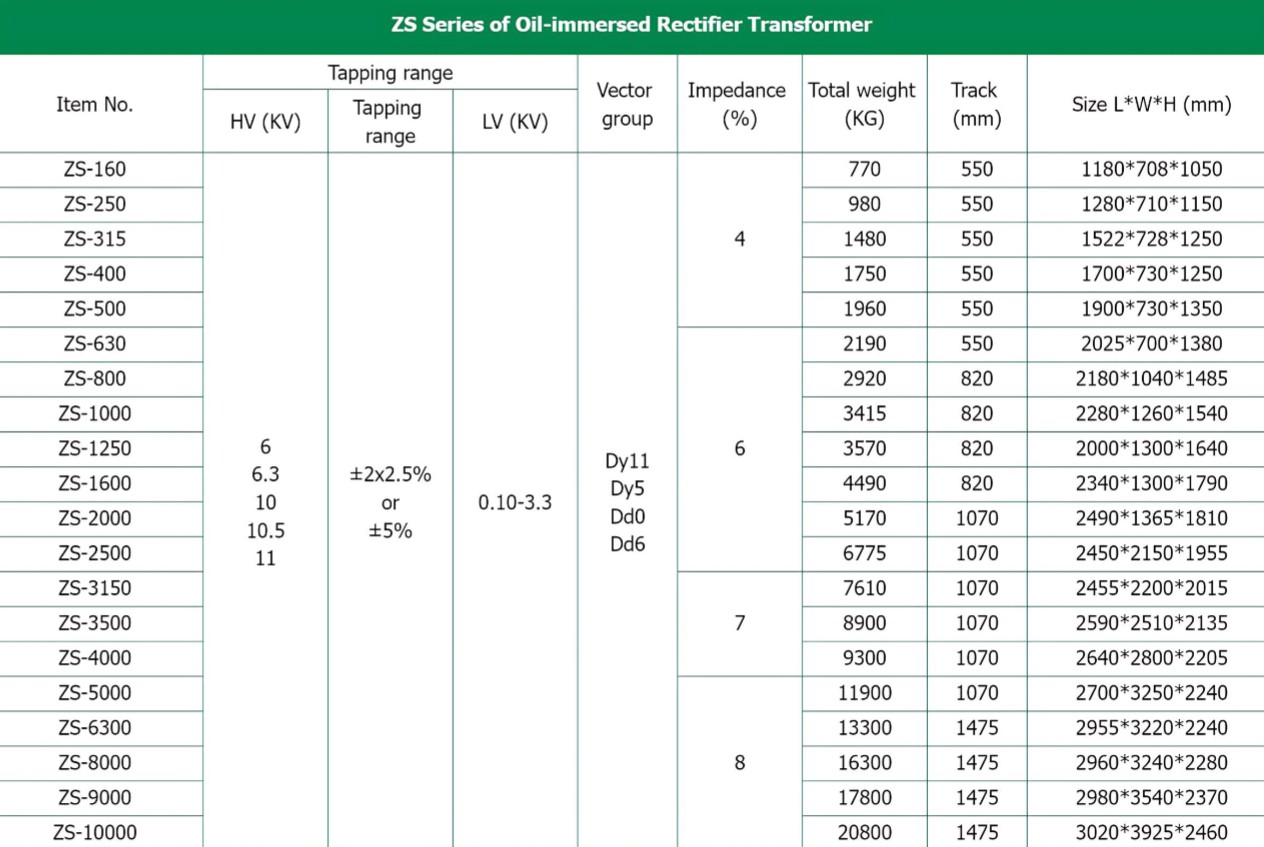

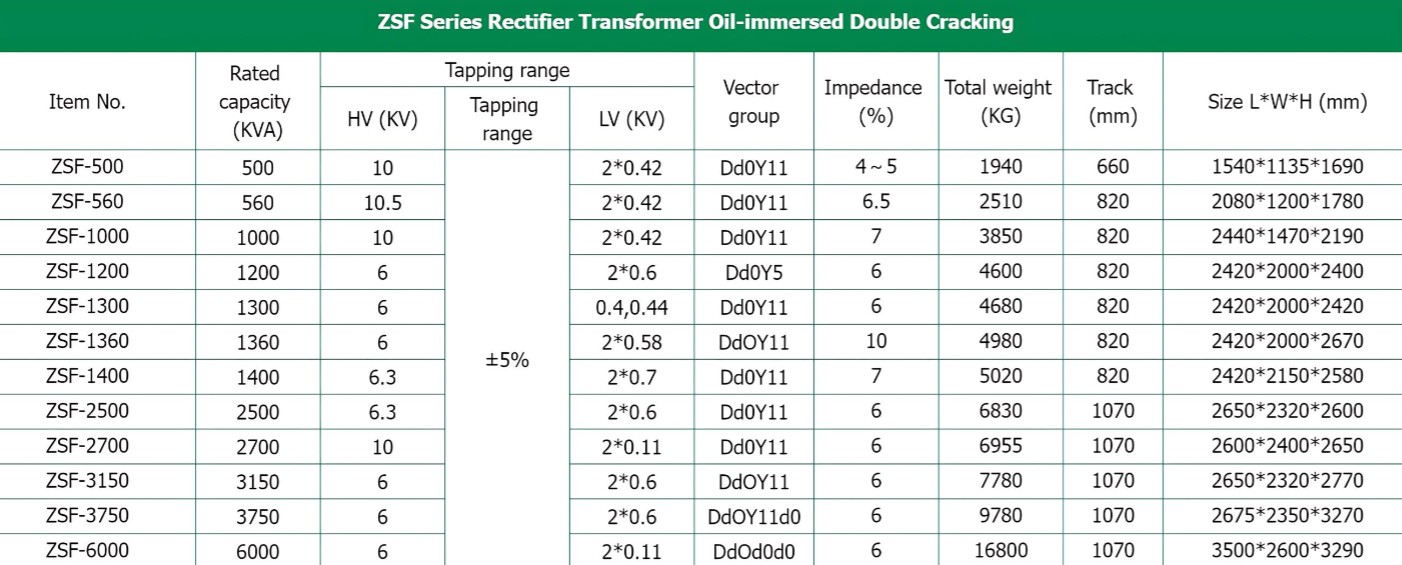

The specific parameter table is as follows, please refer to the parameter table in the figure below!

Contact us for detailed specification
