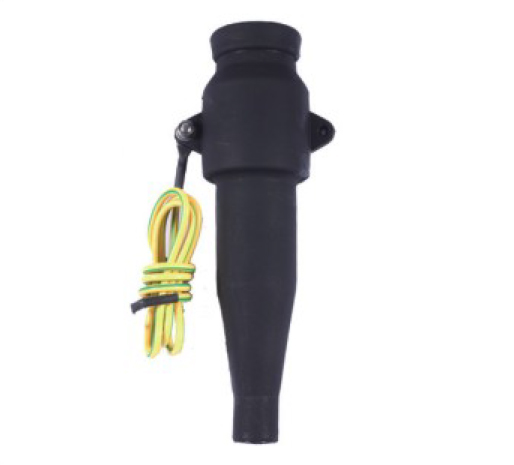

15kV Separable Connector

Key Features

• Rated Voltage: 8.7/15kV
• EPDM Insulation Material: Provides superior electrical properties and environmental resistance.
• Touch-Proof Design: Ensures operator safety by preventing accidental contact.
• Compact and Space-Saving Construction: Saves space and fits easily into tight locations.
• Easy Installation and Maintenance: Simplifies the installation process and reduces maintenance needs.
• Fully Screened and Submersible: Ensures reliable performance in both dry and wet environments.
• Meets IEC 60502-4 Standards: Adheres to international standards for safety and performance.
• Compatible with Various Cable Types and Sizes: Fits a wide range of cable configurations.

Applications

• Transformer Connections: Ensures reliable and efficient connections to transformers.
• Switchgear Terminations: Provides stable and safe connections in switchgear systems.
• Ring Main Units: Supports the operation of ring main units in various settings.
• Power Distribution Networks: Ensures reliable power distribution in network configurations.
• Industrial Facilities: Provides stable power supply in industrial settings.
• Renewable Energy Installations: Ideal for connecting renewable energy sources to the grid.

Innovative Design

• Quick Installation: The patented quick-connect system simplifies the installation process, reducing labor costs and time.
• Optimal Electrical Contact and Stress Control: Advanced design ensures minimal contact resistance and optimal electrical performance.
• Robust Construction: Durable materials and design ensure long-term reliability and minimal maintenance requirements.

Technical Specifications

• Rated Voltage: 8.7/15kV
• Current Rating: Up to 630A
• Basic Insulation Level (BIL): 75kV
• Temperature Range: -40°C to 90°C
• Insulation Material: High-grade EPDM
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEC 60502-4

Testing and Quality Assurance

• Rigorous Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

Backed by Our Technical Support Team

Our dedicated technical support team is always ready to assist you with any questions or concerns. With a proven track record of excellence, this terminal represents the future of medium voltage power distribution solutions.
