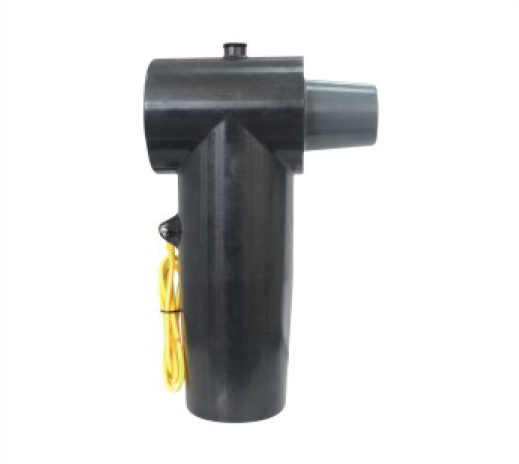

20kV Cable Terminal Solution 2025

Outstanding Features

• Advanced Screened and Fully Submersible Construction: Ensures reliable performance in both dry and wet environments.
• Patented Quick-Connect System for Rapid Installation: Simplifies the installation process, reducing labor costs and time.
• Enhanced Electrical Stress Control Technology: Minimizes electrical stress, enhancing performance and longevity.
• Superior Environmental Protection Rating: Protects against moisture, dust, and other contaminants.
• Certified to Latest IEC/IEEE Standards: Adheres to international standards for safety and performance.
• Universal Cable Compatibility: Fits a wide range of cable types and sizes.
• Zero Maintenance Design: Requires no regular maintenance, reducing downtime and operational costs.
• Extended 5-Year Warranty: Provides peace of mind and long-term reliability.

Perfect For

• Smart Grid Infrastructure: Ensures reliable and efficient power distribution in smart grid systems.
• Industrial Power Systems: Provides stable power supply in industrial settings.
• Renewable Energy Facilities: Ideal for connecting renewable energy sources to the grid.
• Underground Distribution Networks: Suitable for underground installations, ensuring long-term performance.
• Transformer Connections: Supports safe and efficient connections to transformers.
• Modern Switchgear Installations: Enhances the reliability of modern switchgear systems.

Technical Specifications

• Rated Voltage: 20kV
• Current Rating: Up to 630A
• Basic Insulation Level (BIL): 125kV
• Temperature Range: -40°C to 90°C
• Insulation Material: High-grade EPDM
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEC 62271-208, IEEE 386

Innovative Design

• State-of-the-Art Insulation Materials: High-grade EPDM provides excellent dielectric properties and environmental resistance.
• Precise Electrical Stress Control: Ensures optimal performance under high voltage conditions.
• Comprehensive Touch Protection: Prevents accidental contact, enhancing operator safety.
• Modular Design: Facilitates easy and secure connections in diverse applications.

Testing and Quality Assurance

• Comprehensive Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

Backed by Our Technical Support Team

Our dedicated technical support team is always ready to assist you with any questions or concerns. With a proven track record of excellence, this terminal represents the future of medium voltage power distribution solutions.
