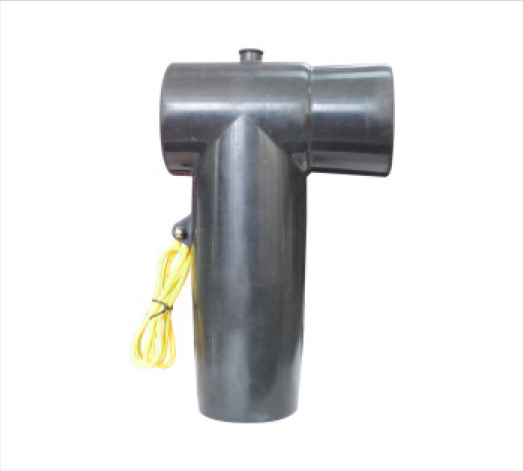

20kV Separable Cable Terminal

Key Features

• Fully Screened and Submersible Design: Ensures reliable performance in both dry and wet environments.
• Easy Plug-and-Play Installation System: Simplifies the installation process, reducing labor costs and time.
• Superior Electrical Stress Control: Minimizes electrical stress, enhancing performance and longevity.
• Exceptional Resistance to Environmental Factors: Protects against moisture, dust, and other contaminants.
• Compliant with IEC/IEEE Standards: Adheres to international standards for safety and performance.
• Compatible with Various Cable Types and Sizes: Fits a wide range of cable configurations.
• Maintenance-Free Operation: Requires no regular maintenance, reducing downtime and operational costs.
• Long Service Life Expectancy: Built to last, ensuring reliable performance over an extended period.

Technical Specifications

• Rated Voltage: 20kV
• Current Rating: Up to 630A
• Basic Insulation Level (BIL): 125kV
• Temperature Range: -40°C to 90°C
• Insulation Material: High-grade EPDM
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEC 62271-208, IEEE 386

Applications

• Power Distribution Networks: Ensures reliable and efficient power distribution in various network configurations.
• Industrial Facilities: Provides stable power supply in industrial settings.
• Renewable Energy Installations: Ideal for connecting renewable energy sources to the grid.
• Underground Cable Systems: Suitable for underground installations, ensuring long-term performance.
• Transformer Connections: Supports safe and efficient connections to transformers.
• Switchgear Terminations: Enhances the reliability of switchgear systems.

Innovative Design

• Advanced Insulation Materials: High-grade EPDM provides excellent dielectric properties and environmental resistance.
• Precise Electrical Stress Control: Ensures optimal performance under high voltage conditions.
• Comprehensive Touch Protection: Prevents accidental contact, enhancing operator safety.
• Modular Design: Facilitates easy and secure connections in diverse applications.

Testing and Quality Assurance

• Rigorous Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.
