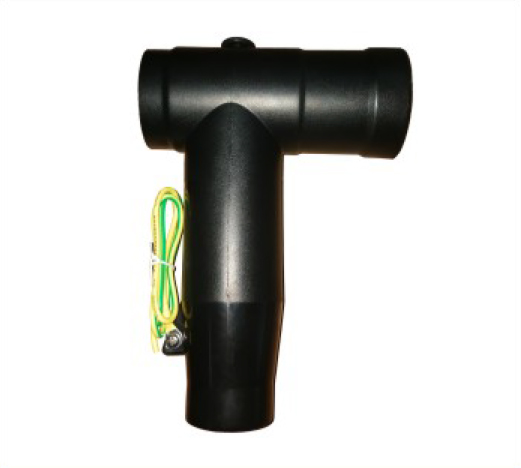

15KV Separable Connectors

The 8.7/15kV Separable Cable Terminal Series represents advanced connection technology designed for medium-voltage power distribution systems. These fully-screened, touch-safe connectors provide exceptional reliability and operational flexibility in compact switchgear and transformer applications.

Key Features

• EPDM Rubber Construction with Superior Electrical Properties: Ensures excellent dielectric properties and environmental resistance.
• Fully Screened and Earthed Design: Provides reliable performance and electrical safety.
• Touch-Safe Operation: Prevents accidental contact, enhancing operator safety.
• Easy Plug-and-Play Installation: Simplifies the installation process, reducing labor costs and time.
• Integrated Capacitive Voltage Detection Point: Facilitates easy and safe voltage testing.
• Excellent Partial Discharge Performance: Minimizes the risk of electrical failures.
• Water and Moisture-Resistant Design: Ensures reliable performance in wet environments.
• Operating Temperature Range: -40°C to +90°C, suitable for extreme conditions.

Applications

• Ring Main Units (RMU): Ideal for use in ring main units for reliable power distribution.
• Compact Switchgear: Provides stable and safe connections in compact switchgear systems.
• Transformer Connections: Ensures reliable and efficient connections for transformers.
• Underground Distribution Networks: Suitable for underground power distribution networks.
• Wind Power Installations: Connects wind turbines to the grid efficiently.
• Solar Power Stations: Ideal for connecting solar panels to the power distribution network.
• Industrial Power Distribution: Supports the operation of industrial facilities requiring high-voltage power.

Benefits

• Enhanced Safety with Touch-Proof Design: Advanced touch-safe design prevents accidental contact.
• Quick and Simple Installation: Easy plug-and-play installation reduces labor costs and time.
• Compact Space-Saving Design: Saves space and fits easily into tight locations.
• Maintenance-Free Operation: Ensures continuous performance without regular maintenance.
• Reliable Connectivity: Provides stable and safe connections in various applications.
• Multiple Connection Configurations Available: Offers flexibility with elbow connectors, T-connectors, and straight connectors.
• Field-Proven Performance: Demonstrated reliability and performance in real-world applications.
• Meets International Safety Standards: Adheres to IEEE and CENELEC standards for safety and performance.

Technical Specifications

• Rated Voltage: 8.7/15kV
• Current Rating: Up to 630A
• Basic Insulation Level (BIL): 75kV
• Temperature Range: -40°C to +90°C
• Insulation Material: High-grade EPDM rubber
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEEE and CENELEC standards

Testing and Quality Assurance

• Rigorous Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

Backed by Comprehensive Technical Support

Our dedicated technical support team is always ready to assist you with any questions or concerns. With a proven track record of excellence, our 8.7/15kV separable cable terminals represent the ideal choice for professional power distribution applications.

24-Month Warranty

Each unit comes with a 24-month warranty, providing peace of mind and long-term reliability.

Included Components

• Premium Components: High-quality materials and construction.
• Detailed Installation Instructions: Step-by-step guides for easy installation.
• Interface Adapters: Where required, to ensure compatibility with various cable types.

Our 8.7/15kV series meets rigorous international safety standards while offering versatile solutions for various connection needs in modern power distribution systems.
