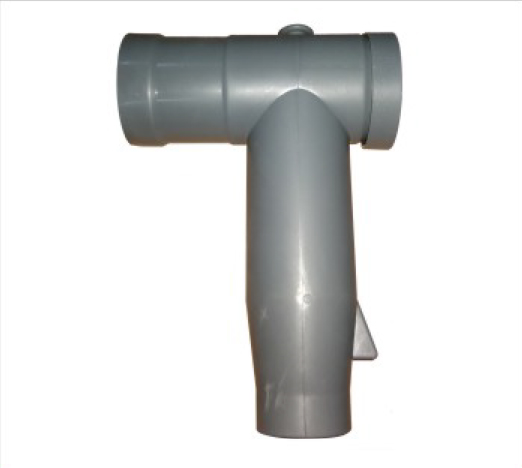

15KV Separator Series

Our 8.7/15kV Separable Cable Terminal Series represents cutting-edge connection technology engineered for modern medium-voltage power distribution networks. These intelligent connectors combine unmatched safety features with exceptional performance reliability.

Key Features

• High-Performance EPDM Insulation Material: Provides superior dielectric properties and environmental resistance.
• Complete Screening and Grounding System: Ensures reliable performance and electrical safety.
• Advanced Touch-Safe Design: Prevents accidental contact, enhancing operator safety.
• Capacitive Test Point for Voltage Detection: Facilitates easy and safe voltage testing.
• Superior Watertight Sealing System: Ensures reliable performance in wet environments.
• Built-In Stress Control Technology: Optimizes electrical performance and minimizes stress concentrations.
• Compact Modular Design: Saves space and fits easily into tight locations.
• Temperature Range: -40°C to +90°C, suitable for extreme conditions.

Applications

• Gas/Air Insulated Switchgear: Ideal for use in gas-insulated and air-insulated switchgear systems.
• Transformer Terminations: Provides stable and safe connections for transformer terminations.
• Ring Main Units (RMU): Ensures reliable power distribution in ring main units.
• Industrial Power Networks: Supports the operation of industrial facilities requiring high-voltage power.
• Renewable Energy Systems: Connects renewable energy sources to the grid efficiently.
• Underground Distribution: Suitable for underground power distribution networks.
• Smart Grid Applications: Integrates seamlessly with smart grid technologies.

Benefits

• Foolproof Installation System: Simplifies the installation process, reducing labor costs and time.
• Zero Maintenance Requirements: Ensures continuous performance without regular maintenance.
• Compact Space Optimization: Saves space and fits easily into tight locations.
• Enhanced Operator Safety: Advanced touch-safe design prevents accidental contact.
• Immediate Energization Capability: Allows for quick and safe energization of the system.
• Multiple Interface Options: Compatible with a wide range of cable configurations.
• Long Service Life: Durable construction ensures long-term reliability.
• Full Compliance with IEC Standards: Adheres to international standards for safety and performance.

Technical Specifications

• Rated Voltage: 8.7/15kV
• Current Rating: Up to 630A
• Basic Insulation Level (BIL): 75kV
• Temperature Range: -40°C to +90°C
• Insulation Material: High-grade EPDM
• Conductor Material: High-conductivity copper
• Environmental Protection: IP68 (fully submersible)
• Compliance: IEC 60502-4

Testing and Quality Assurance

• Rigorous Testing Procedures: Each unit undergoes thorough testing to ensure reliable performance and compliance with international standards.
• Quality Control: Manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability.

Installation and Maintenance

• Easy Installation: Simple and straightforward installation process.
• Regular Maintenance: No regular maintenance required, ensuring continuous performance.
• Professional Technical Support: Comprehensive support and technical assistance.
• Comprehensive Operation Manual: Detailed operating instructions and maintenance guidelines.

Backed by Comprehensive Technical Support

Our dedicated technical support team is always ready to assist you with any questions or concerns. With a proven track record of excellence, our 8.7/15kV separable cable terminals represent the ideal choice for professional power distribution applications.

24-Month Warranty

Each unit comes with a 24-month warranty, providing peace of mind and long-term reliability.

Included Components

• Premium Components: High-quality materials and construction.
• Detailed Installation Guides: Step-by-step instructions for easy installation.
• Interface Adapters: Where required, to ensure compatibility with various cable types.

Our 8.7/15kV series meets rigorous international safety standards while offering versatile solutions for various connection needs in modern power distribution systems.
