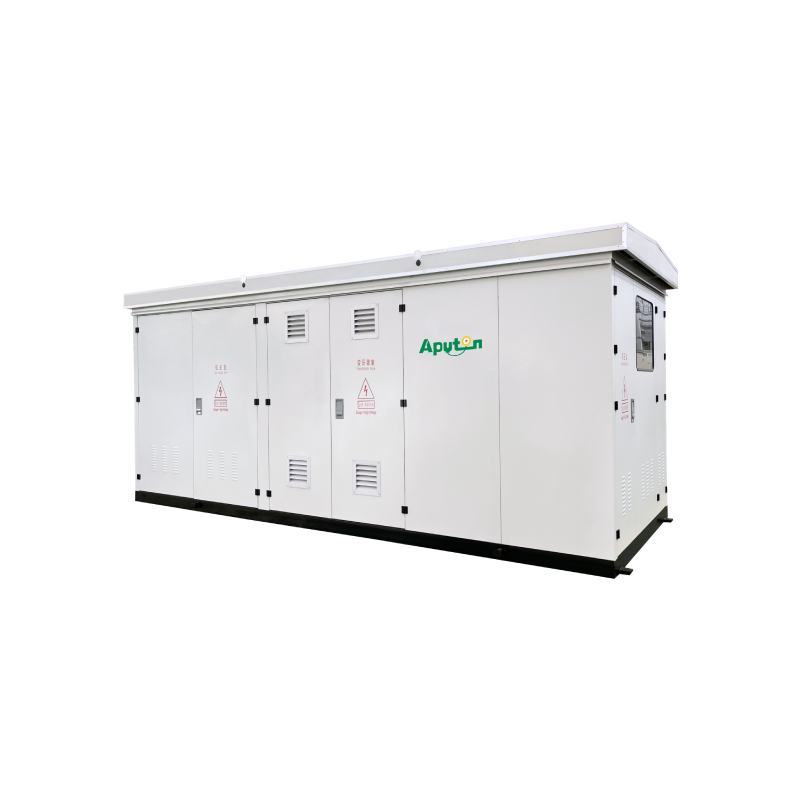

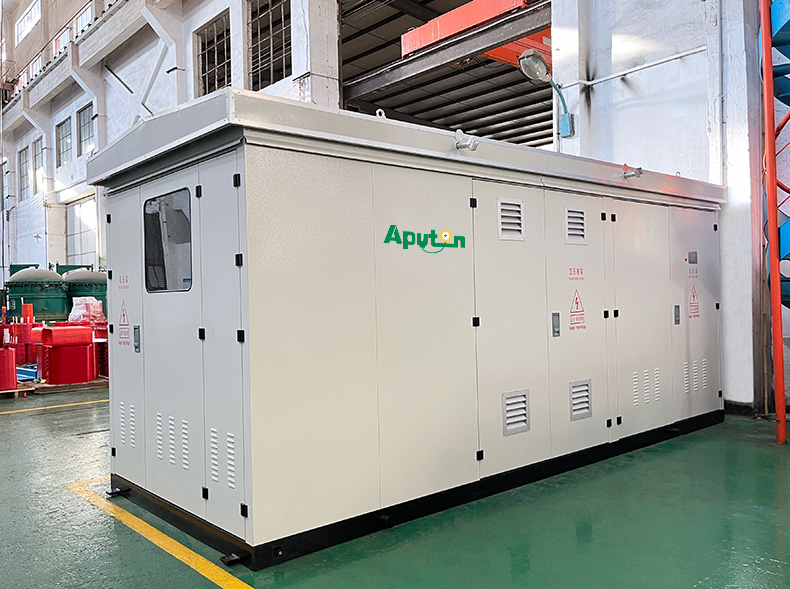

800kVA 15kV Compact Transformer European Box Transformer

Product Highlights

1. Wide Applicability: Suitable for business centers, schools, substations, factories, industrial parks, and more. Customized and highly popular in Africa.
2. Easy Installation: On-site installation requires only six steps: fixing the position, HV incoming terminal wiring, protection setting verification, transmission tests, commissioning, etc. This significantly reduces installation time and improves efficiency.
3. Complete Insulation Structure: Includes HV and LV switchgear, transformer, circuit breakers, and other devices with no exposed live parts, enhancing safety by preventing electric shock risks.
4. Flexible Combination Methods: Each compact transformer is an independent system, allowing for flexible and diverse combination methods to meet different needs.
5. Multi-functional Integration: Comprises dry-type transformers, ring main units, and low-voltage compartments, providing comprehensive functionality.
6. Integrated Power System: Integrates high-voltage switchgear, low-voltage switchgear, transformers, and circuit breakers into a single unit.
7. Customizable Solutions: Can be customized and expanded according to customer requirements.

Product Features

• Compact Design: Ideal for limited spaces without compromising power capacity.
• High Voltage (15kV) and Low Voltage Distribution: Tailored for diverse industrial and utility-scale applications.
• Enhanced Efficiency: The transformer core and coil design minimize losses while delivering consistent performance.
• Three-phase Power: Ensures reliable and balanced power distribution for complex electrical systems.
• Advanced Cooling Systems: Advanced transformer cooling technology enhances durability and operational stability.

Applications/Applicable Scenarios

• Electrical Substations: Suitable for urban distribution networks and industrial park power systems.
• Industrial Power Systems: Supports stable power for production lines, machinery, lighting systems, and ensures continuous high-load power demand in factories.
• Smart Grid Deployments: A trusted choice for supporting energy demands in factories, commercial complexes, and utility networks.
• Business Centers: Provides stable power supply for malls, office buildings, hotels, etc.
• Schools and Educational Institutions: Supplies power to teaching buildings, laboratories, dormitories, etc.
• Renewable Energy Projects: Used for energy conversion and pre-distribution in solar, wind, and other renewable energy generation systems, promoting efficient use of clean energy.
• Special Applications: Can be paired with rectifiers, UPS systems, and other devices for special industries such as electroplating, electrolysis, and communication base stations.

Advantages

• Short Installation Period: The on-site installation only takes six steps: fix the position, HV incoming terminal wiring, protection setting verification, transmission tests, commissioning, etc.
• Complete Insulation Structure: Compact transformer includes HV and LV switchgear, transformer, circuit breakers, and other devices without exposed live parts in a complete insulation structure to avoid electric shock risk and enhance safety levels.
• Flexible Combination Method: Each Compact Transformer is an independent system, which varies the combination method to suit different needs.

Technical Specifications

• Model Number: YBW-800/15/0.4
• Rated Voltage (HV Side): 15kV
• Rated Voltage (LV Side): 0.4kV
• Rated Power: 800kVA
• Number of Phases: Three
• Rated Frequency: 50Hz

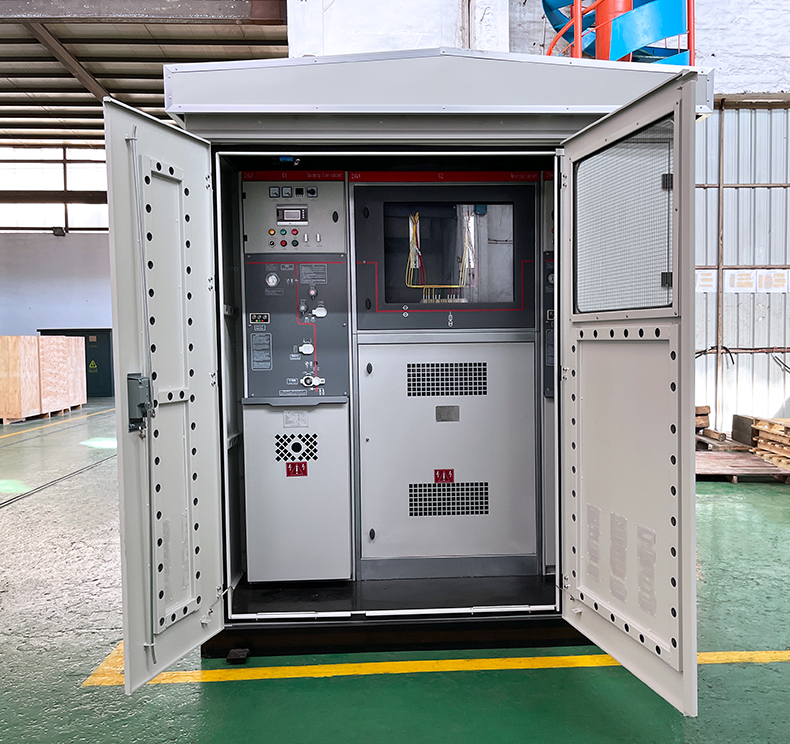

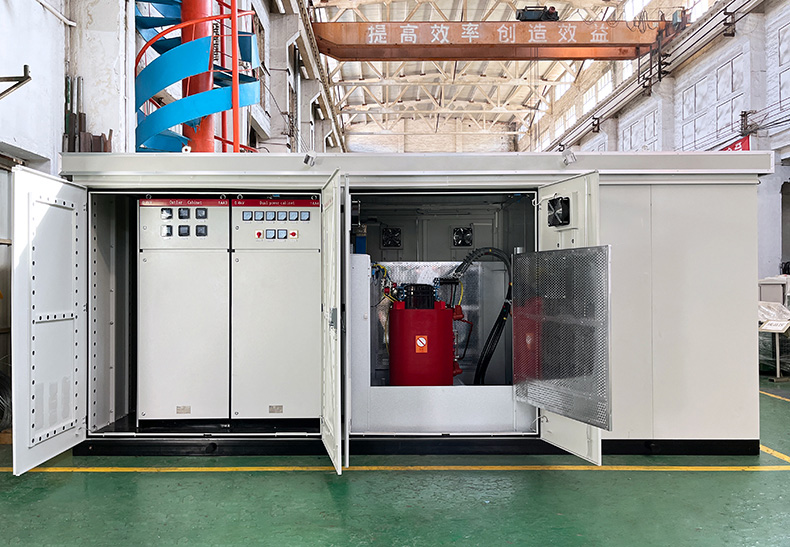

• Composition: Dry-type transformer, ring main unit, and low-voltage compartment
• Standards: IEC standard
• Brand: Aputon

Why Choose Our Transformers?

1. High-Quality Materials: Utilizes premium materials to ensure durability and safety.
2. Professional Design: Rigorously tested to meet international safety standards, ensuring reliable performance.
3. Dedicated After-sales Service: Aputon provides reliable brand support and technical assistance, ensuring a worry-free purchase experience.

Purchase Tips

• Ensure that your equipment's power consumption does not exceed the transformer's rated power.
• For assistance, please contact our customer service team, and we will be happy to assist you!

Contact us for detailed specification
