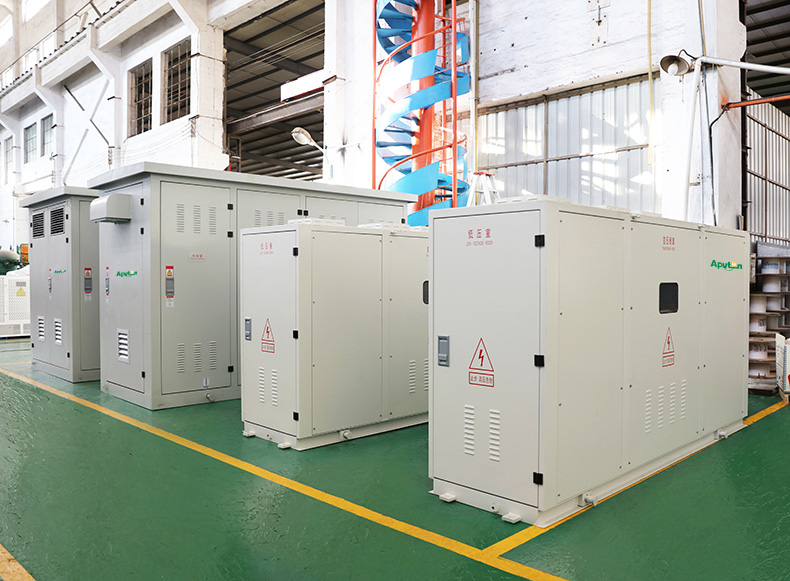

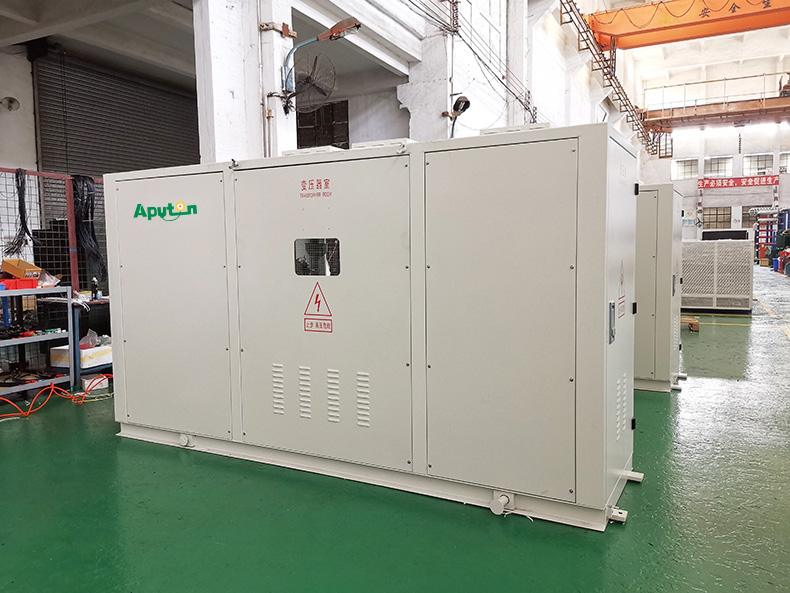

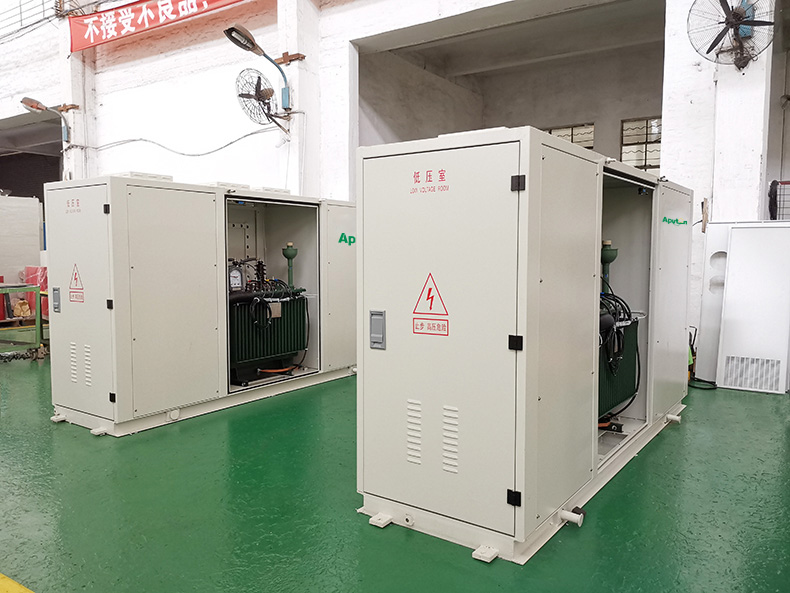

Three Phase Box Type Compact Transformer for Tunnel

Product Highlights

• Wide Applicability: Ideal for business centers, schools, substations, factories, tunnels, and other environments requiring reliable and efficient power distribution.
• Short Installation Period: On-site installation is simplified into just six steps: fixing the position, connecting the high-voltage (HV) incoming terminal, verifying protection settings, conducting transmission tests, and final commissioning. This streamlined process significantly reduces installation time and enhances efficiency.
• Complete Insulation Structure: The compact transformer features a robust insulation system that includes high-voltage (HV) and low-voltage (LV) switchgear, transformers, circuit breakers, and other critical components. This design ensures no exposed live parts, thereby minimizing the risk of electric shock and enhancing overall safety.
• Flexible Combination Methods: Each compact transformer is an independent system, allowing for flexible and diverse configuration options to meet a wide range of needs and applications.

Product Features

• Compact Design: Optimized for installations in confined spaces without sacrificing power capacity, making it ideal for urban and industrial settings.
• High Voltage (20kV) and Low Voltage Distribution: Designed to handle high-voltage (20kV) input and low-voltage (0.4kV) output, catering to a variety of industrial and utility-scale applications.
• Enhanced Efficiency: The transformer core and coil are engineered to minimize energy losses, ensuring consistent and efficient performance over extended periods.
• Three-phase Power: Provides reliable and balanced power distribution, essential for complex electrical systems and heavy-duty applications.
• Advanced Cooling Systems: Equipped with advanced cooling technologies to maintain optimal operating temperatures, enhancing the transformer's durability and operational stability.

Applications/Applicable Scenarios

• Electrical Substations: Suitable for urban distribution networks and industrial park power systems, ensuring stable and efficient power distribution.
• Industrial Power Systems: Supports continuous and stable power supply for production lines, machinery, lighting systems, and other high-load applications in factories.
• Business Centers: Provides a reliable power supply for commercial complexes, including malls, office buildings, and hotels.
• Schools and Educational Institutions: Supplies power to educational facilities, including teaching buildings, laboratories, and dormitories.
• Tunnels and Special Environments: Ideal for challenging environments such as tunnels, where reliable and safe power distribution is crucial.
• Renewable Energy Projects: Supports energy conversion and pre-distribution in solar, wind, and other renewable energy systems, promoting the efficient use of clean energy.

Advantages

• Short Installation Period: The six-step installation process, including fixing the position, connecting the HV terminal, verifying protection settings, conducting transmission tests, and final commissioning, ensures quick and efficient setup.
• Complete Insulation Structure: The comprehensive insulation design, covering all critical components, eliminates the risk of electric shock and enhances safety levels.
• Flexible Combination Method: Each compact transformer is an independent system, allowing for flexible and diverse configuration options to meet specific needs and applications.

Technical Specifications

• Model Number: YBW-80/20
• Rated Voltage (HV Side): 20kV
• Rated Voltage (LV Side): 0.4kV
• Rated Power: 80kVA
• Number of Phases: Three
• Rated Frequency: 50Hz
• Composition: Transformer, high-voltage and low-voltage compartments
• Standards: Meets IEC standards
• Brand: Aputon

Why Choose Our Transformers?

• High-Quality Materials: Constructed using premium materials to ensure long-term durability and safety.
• Professional Design: Rigorously tested to meet international safety and performance standards, ensuring reliable and consistent operation.
• Dedicated After-sales Service: Aputon offers comprehensive support and technical assistance, ensuring a seamless and worry-free purchase experience.

Purchase Tips

• Power Capacity: Ensure that the total power consumption of your connected equipment does not exceed the transformer's rated power capacity.
• Technical Support: For any questions or assistance, please contact our customer service team, and we will be happy to help you.

Contact us for detailed specification
