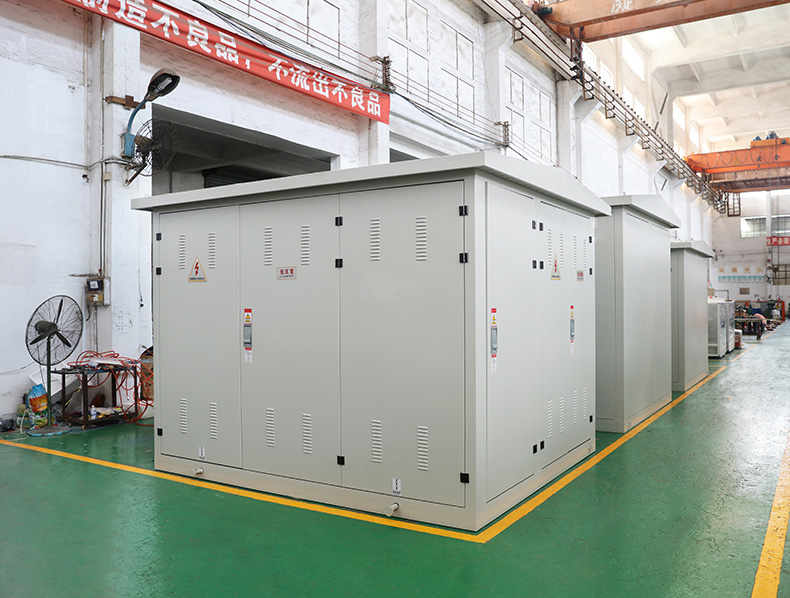

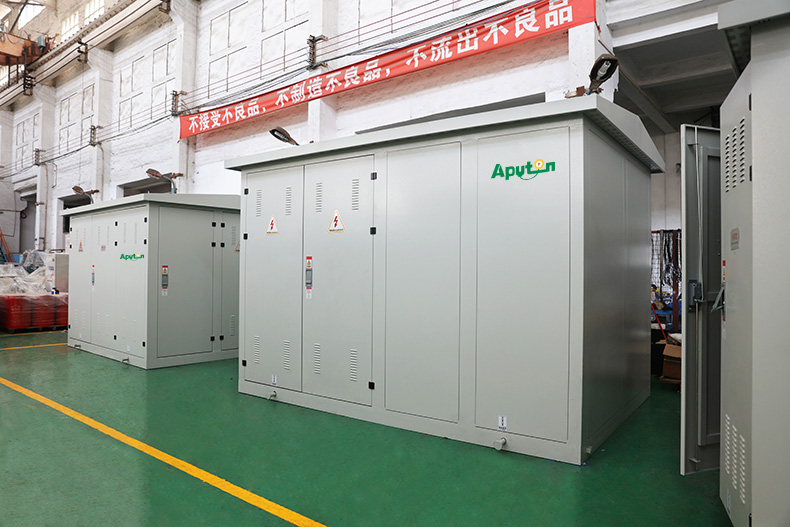

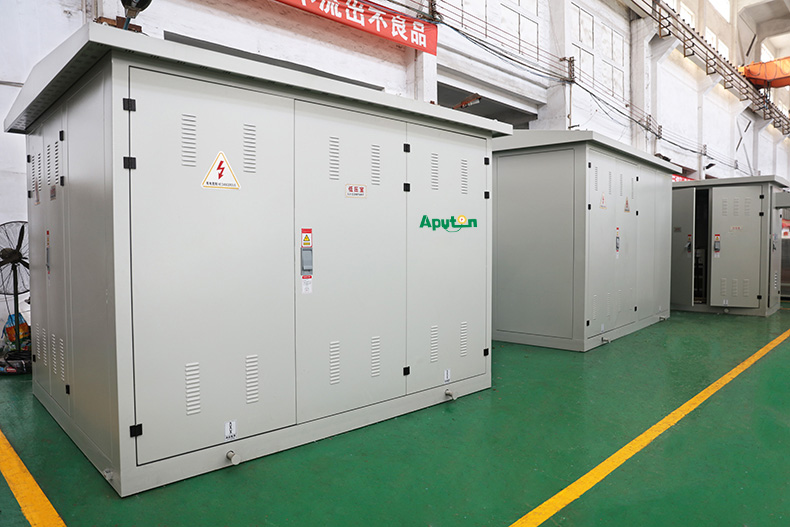

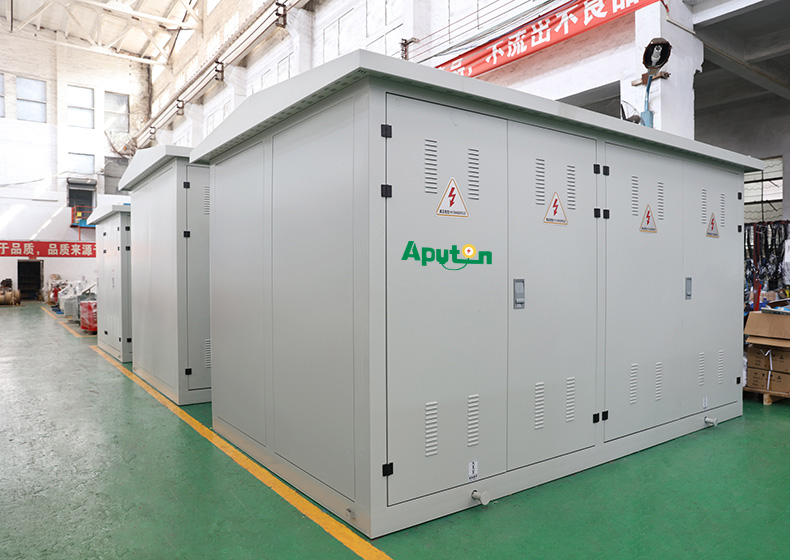

PV Photovoltaic Power Generation European Box Transformer

Product Highlights

• Wide Applicability: Ideal for solar power systems, photovoltaic (PV) installations, and other renewable energy applications.
• Short Installation Period: On-site installation is simplified into just six steps: fixing the position, connecting the high-voltage (HV) incoming terminal, verifying protection settings, conducting transmission tests, and final commissioning. This streamlined process significantly reduces installation time and enhances efficiency.
• Complete Insulation Structure: The transformer features a robust insulation system that includes high-voltage (HV) and low-voltage (LV) switchgear, transformers, circuit breakers, and other critical components. This design ensures no exposed live parts, thereby minimizing the risk of electric shock and enhancing overall safety.
• Flexible Configuration: Each box-type transformer is an independent system, allowing for flexible and diverse configuration options to meet specific needs and applications.

Product Features

• Compact Design: Optimized for installations in confined spaces without sacrificing power capacity, making it ideal for urban and industrial settings.
• Customizable Voltage and Power Ratings: The transformer can be customized to meet specific voltage and power requirements, ensuring compatibility with a wide range of solar power systems.
• Enhanced Efficiency: The transformer core and coil are engineered to minimize energy losses, ensuring consistent and efficient performance over extended periods.
• Three-phase Power: Provides reliable and balanced power distribution, essential for complex electrical systems and heavy-duty applications.
• Advanced Cooling Systems: Equipped with advanced cooling technologies to maintain optimal operating temperatures, enhancing the transformer's durability and operational stability.
• Integrated Protection Systems: Built-in protection mechanisms ensure the transformer operates safely and efficiently under various conditions.

Applications/Applicable Scenarios

• Solar Power Systems: Ideal for large-scale solar power plants and residential PV installations, ensuring efficient and reliable power conversion and distribution.
• Renewable Energy Projects: Supports energy conversion and pre-distribution in solar, wind, and other renewable energy systems, promoting the efficient use of clean energy.
• Industrial Power Systems: Suitable for industrial applications where stable and continuous power supply is crucial, such as manufacturing plants and warehouses.
• Commercial Buildings: Provides a reliable power supply for commercial complexes, including malls, office buildings, and hotels.
• Rural Electrification: Ideal for remote areas and rural electrification projects, where traditional grid connections may be limited or unavailable.

Advantages

• Short Installation Period: The six-step installation process, including fixing the position, connecting the HV terminal, verifying protection settings, conducting transmission tests, and final commissioning, ensures quick and efficient setup.
• Complete Insulation Structure: The comprehensive insulation design, covering all critical components, eliminates the risk of electric shock and enhances safety levels.
• Flexible Configuration: Each box-type transformer is an independent system, allowing for flexible and diverse configuration options to meet specific needs and applications.
• High Reliability: Built with high-quality materials and advanced engineering, ensuring long-term reliability and minimal maintenance.

Technical Specifications

• Model Number: YBW-XX/XX/XX
• Rated Voltage (HV Side): Customizable
• Rated Voltage (LV Side): Customizable
• Rated Power: Customizable
• Number of Phases: Three
• Rated Frequency: 50Hz/60Hz
• Standard: Meets IEC standards
• Brand: Aputon

Why Choose Our Transformers?

• High-Quality Materials: Constructed using premium materials to ensure long-term durability and safety.
• Professional Design: Rigorously tested to meet international safety and performance standards, ensuring reliable and consistent operation.
• Dedicated After-sales Service: Aputon offers comprehensive support and technical assistance, ensuring a seamless and worry-free purchase experience.

Purchase Tips

• Customization: Ensure that the transformer's voltage and power ratings are customized to match your specific application requirements.
• Technical Support: For any questions or assistance, please contact our customer service team, and we will be happy to help you.

Contact us with detailed specification
