Advanced Oil Transformer Safety: Innovations & Solutions

Introduction

Power transformers are crucial components in electrical power systems, with oil-immersed transformers being widely used due to their excellent cooling and insulating properties. However, recent research has highlighted significant safety concerns that demand attention. A groundbreaking study published in Case Studies in Thermal Engineering (2024) by Jia et al. reveals critical insights into arc fault behavior in transformer oil.

Understanding the Risks: Key Research Findings

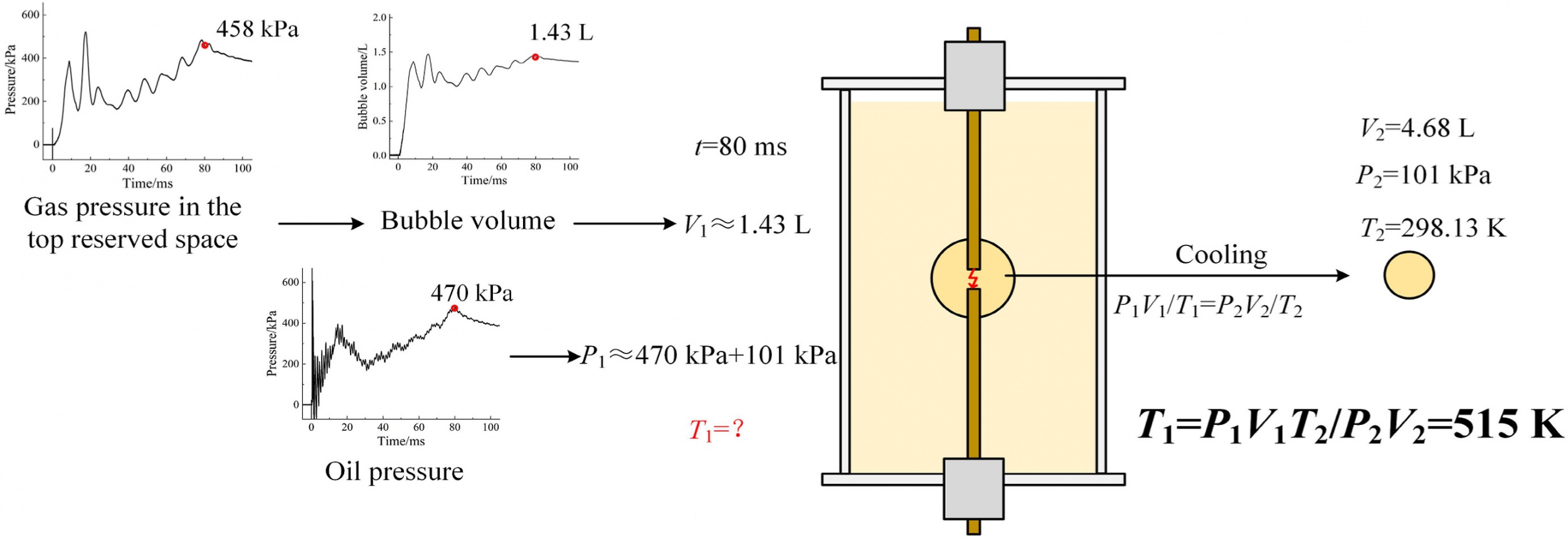

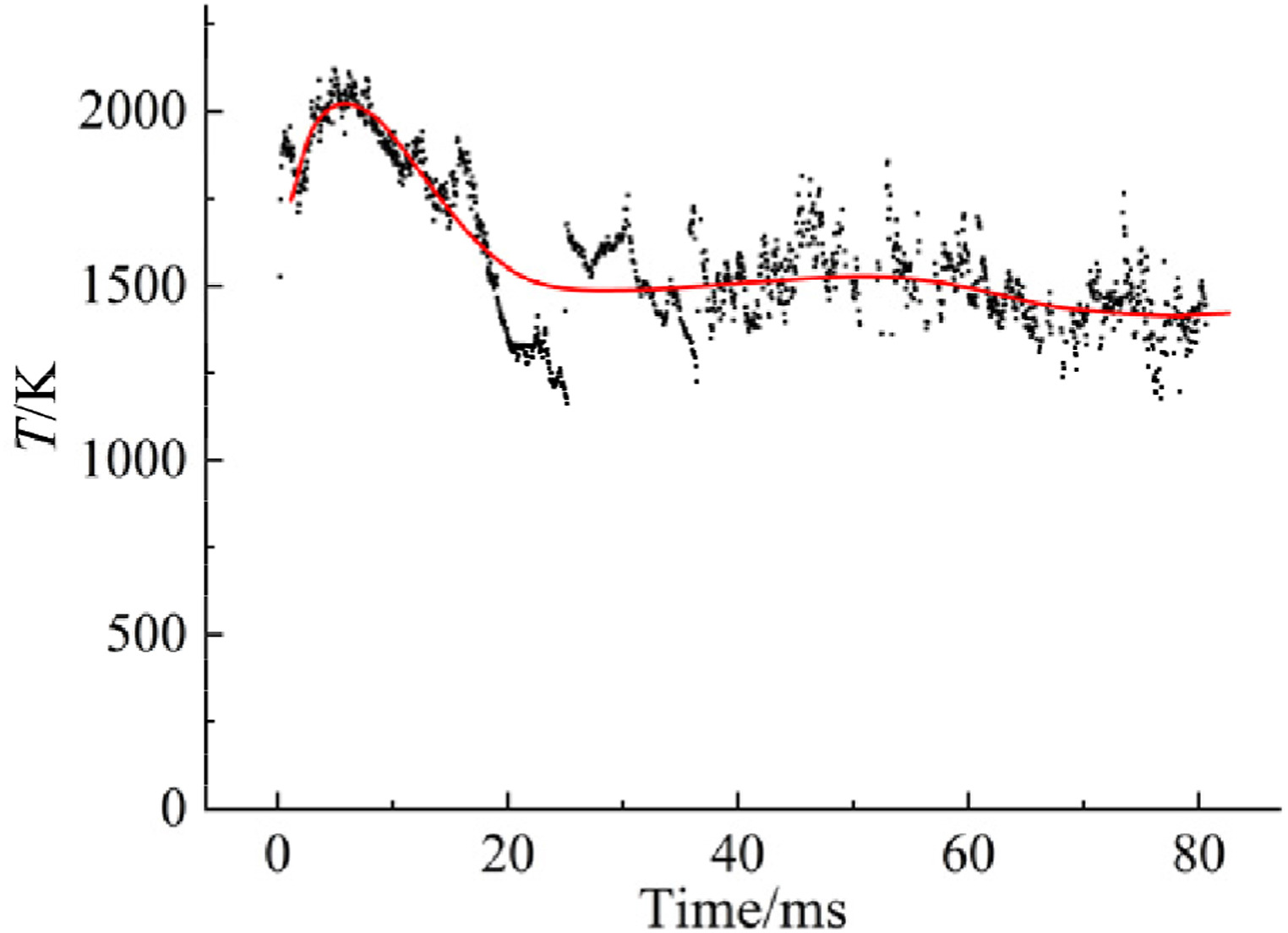

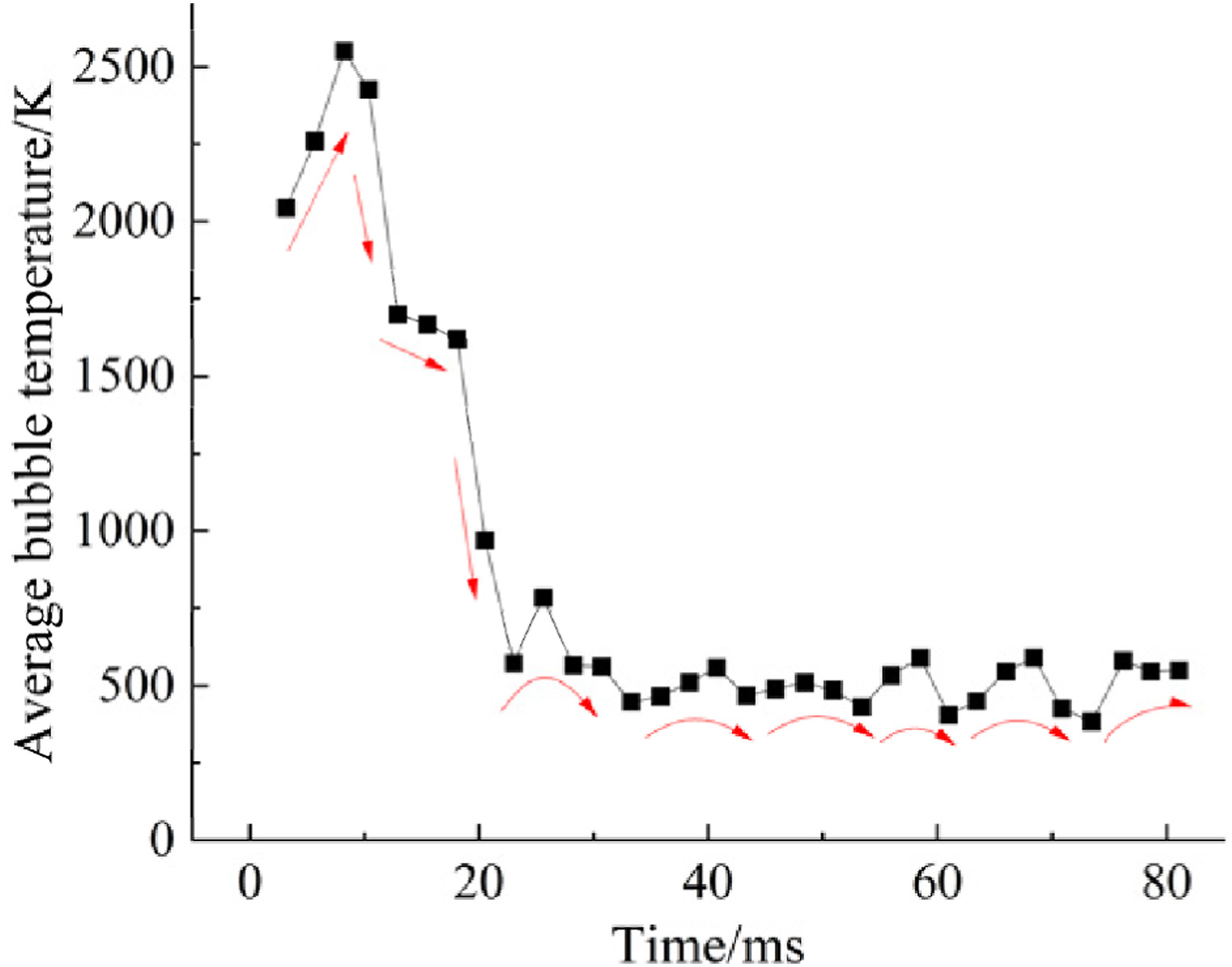

According to Jia et al.'s research at Xi'an Jiaotong University, when an arc fault occurs in transformer oil (5kA, 30mm gap, 80ms duration), several concerning phenomena emerge:

The study also revealed significant changes in gas composition:

• Hydrogen content decreases from 85.2% to 70%
• Gas production rate increases from 0.0574 L/kJ to 0.0982 L/kJ

•


Common Challenges with Traditional Oil-immersed Transformers

1. Safety Risks:

• Fire hazards due to oil flammability
• Explosion risks from arc faults
• Environmental concerns from oil leaks

•


2. Maintenance Issues:

• Regular oil quality monitoring required
• Expensive oil replacement costs
• Complex oil disposal procedures

•


Our Innovation: Next-Generation Oil-immersed Transformers

We, Aputon Electrical Co., Ltd., have a better solutions addressing these critical issues:

Enhanced Safety Features:

• Advanced Tank Design:
  • Optimized expansion space
  • Reinforced tank structure
  • Strategic baffle placement

Improved Oil Technology:

✓ Higher thermal resistance

✓ Enhanced breakdown voltage

✓ Superior cooling properties

✓ Advanced additives for bubble suppression

Smart Monitoring System:

1. Real-time gas detection
2. Rapid circuit protection
3. Temperature and pressure monitoring
4. Multi-layer protection mechanisms

5.


Dry-type Transformers: A Safe Alternative

If you still have some doubts about oil-immersed transformers, we have better products. For environments where oil-related risks are unacceptable, our dry-type transformers offer:

Comparative Analysis

Maintenance and Support

We provide comprehensive support:

• Regular oil quality testing
• Timely oil replacement services
• Preventive testing programs
•


Innovation Meets Safety

Our transformers incorporate lessons learned from recent research, including the findings from Jia et al. (2024). By understanding the complex behavior of arc faults in transformer oil, we've developed solutions that significantly reduce associated risks.

Conclusion

While traditional oil-immersed transformers present certain risks, our enhanced designs and dry-type alternatives offer superior safety and reliability. By combining cutting-edge research with practical engineering solutions, we provide transformers that meet modern safety and efficiency standards.

Reference

Jia, Y., Luo, X., Ji, S., Gao, W., Li, S., & Zhang, F. (2024). Pyrolysis and temperature characteristics of the gas produced by power-frequency arc in transformer oil. Case Studies in Thermal Engineering, 61, 104913.
