High-Frequency High-Voltage Pulse DC Power Supply: Future Breakthroughs

Introduction

Imagine what the future of power electronics will look like? It must be wonderful! But do you know that high-frequency and high-voltage pulsed DC power supply technology plays an indispensable role in it? High-frequency high-voltage pulse DC power supply technology has emerged as a cornerstone innovation in power electronics, demonstrating remarkable potential across diverse applications. The field is evolving rapidly toward higher frequencies, voltages, and power ratings, while incorporating more sophisticated control mechanisms.

Technical Overview

A high-frequency high-voltage pulse DC power supply converts low-voltage DC into high-frequency, high-voltage pulsed DC output. However, the following key factors are indispensable to achieve this process:

• DC conversion stage

• Optical isolation

• Power switching

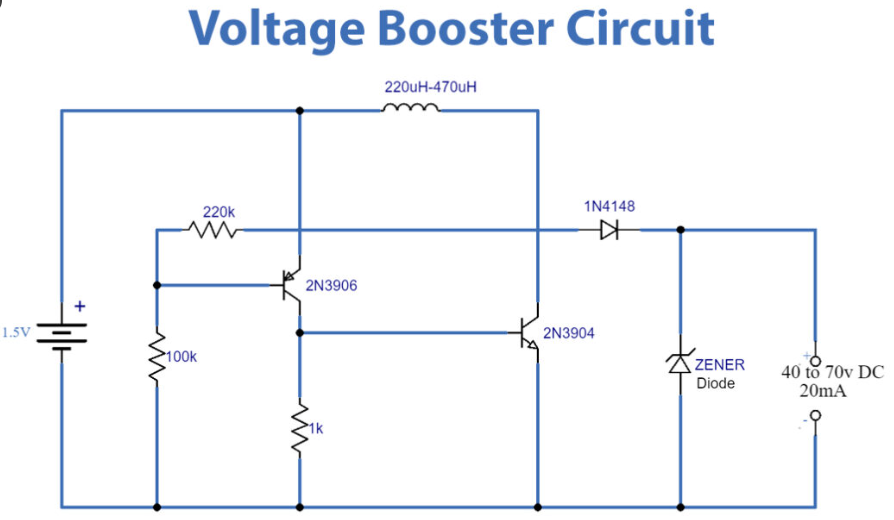

• Voltage boost circuitry

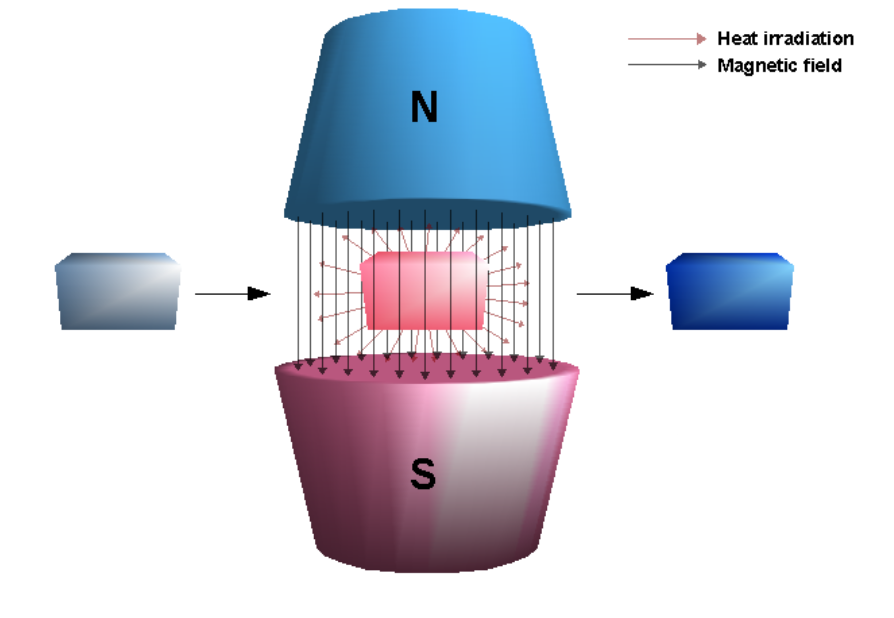

• Magnetic compression systems

They all have these notable features to help achieve their purpose, such as the following:
• Compact design
• Lightweight construction
• High efficiency
• Rapid response characteristics

Primary Applications

This technology plays a vital role in the medical field, including the following application scenarios:

• X-ray high-voltage power supplies
• DC high-voltage medical imaging systems

If you think that this is the only use of it, you are wrong! Its application in the industrial field is also important:

• Material surface modification
• Wastewater treatment
• Plasma processing

If you think that's all, you're wrong again! It has also made significant contributions to scientific research:

• Controlled nuclear fusion experiments
• High-energy particle acceleration
• Plasma heating systems

Technical Advantages and Limitations

Of course, nothing is omnipotent in the world. If there is, it means you are daydreaming and it will be fine when you wake up. As the famous philosopher Marx firmly believed in dialectical materialism, everything has two sides, good and bad, this is the normal state of life.

Advantages:

1. High Reliability

2. Low Output Ripple

3. Management Efficiency


Limitations:

• Complex circuit design requirements
• EMI challenges
• Higher implementation costs

Technical Challenges

At present, this technology is in the critical stage, and there are still many difficulties to overcome. The key areas of the battle are as follows::

1. Frequency Control

2. High-Voltage Components

3. Insulation Materials

Future Development Trends

But don't let these difficulties overwhelm you, my friend. This is the future, and the right thing to do is to overcome it and embrace it.

1. Performance Enhancement

2. Technical Innovation

3. Application Expansion

Market Analysis

Its future is immeasurable. We predict its future market trend:

• Chinese power supply market expected to reach 540 billion RMB by 2025
• Strong growth in inverter segment
• Increasing demand for high-frequency applications

Key Players and Research Institutions

The following are the leaders.

Commercial Enterprises:

• Tesman High Voltage Power Supply
• Century Xingtian (Suzhou) Big Data Technology

Research Institutions:

• Southwestern Institute of Physics
• Shanghai University of Technology
• Chinese Academy of Sciences Institute of Electrical Engineering
• Xi'an Jiaotong University

Conclusion

The field of high-frequency high-voltage pulse DC power supplies continues to advance rapidly, driven by innovations in semiconductor devices, transformer technology, and control systems. Despite technical challenges, the technology's expanding applications in medical, industrial, and scientific fields indicate substantial growth potential. Key future directions include advanced semiconductor implementation, improved transformer design, artificial intelligence-based control systems, and enhanced power synthesis technology. This technology represents a critical component in the future of power electronics, with significant implications for technological advancement and societal development.
